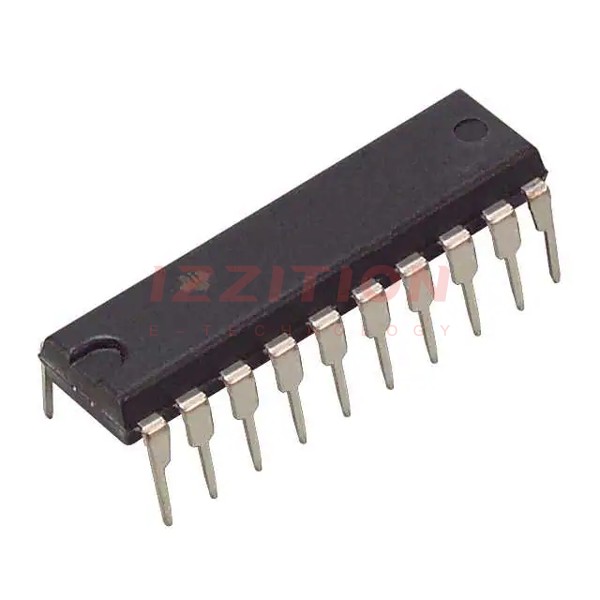

| Part Number | TLC7528CN | TLC7528EN | TLC7528CNS | TLC7628CN | TLC7528IN | TLC7524CN | TLC7528CFN |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of D/A Converters | 2 | 2 | 2 | 2 | 2 | 1 | 2 |
| Settling Time | 100ns | 100ns | 100ns | 100ns | 100ns | 100ns | 100ns |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | No | No | Yes | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External | External | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 10.8V ~ 15.75V | 5V ~ 15V | 5V, 14.5V ~ 15.5V | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V | 5V ~ 15V | 5V ~ 15V | 10.8V ~ 15.75V | 5V ~ 15V | 5V, 14.5V ~ 15.5V | 5V ~ 15V |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±2.5 (Max) | ±0.5 (Max), ±0.5 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | -25°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-SOIC (0.209", 5.30mm Width) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PDIP | 20-PDIP | 20-SO | 20-PDIP | 20-PDIP | 16-PDIP | 20-PLCC (9x9) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Surface Mount |
