TLC7524CFNR
  • Share:

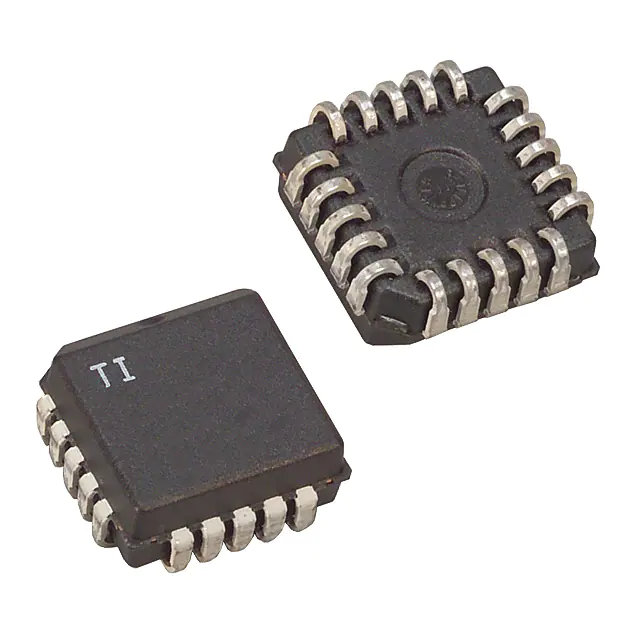

Texas Instruments TLC7524CFNR

Manufacturer No:
TLC7524CFNR
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
TLC7524CFNR Datasheet
ECAD Model:
-
Description:
IC DAC 8BIT A-OUT 20PLCC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:8
Number of D/A Converters:1
Settling Time:100ns
Output Type:Current - Unbuffered
Differential Output:Yes
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:5V, 14.5V ~ 15.5V
Voltage - Supply, Digital:5V, 14.5V ~ 15.5V
INL/DNL (LSB):±0.5 (Max), ±2.5 (Max)
Architecture:R-2R
Operating Temperature:0°C ~ 70°C
Package / Case:20-LCC (J-Lead)
Supplier Device Package:20-PLCC (9x9)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$2.18
234

Please send RFQ , we will respond immediately.

Similar Products

Part Number TLC7524CFNR TLC7528CFNR   TLC7524IFNR   TLC7524CFN
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Obsolete Obsolete
Number of Bits 8 8 8 8
Number of D/A Converters 1 2 1 1
Settling Time 100ns 100ns 100ns 100ns
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output Yes No Yes Yes
Data Interface Parallel Parallel Parallel Parallel
Reference Type External External External External
Voltage - Supply, Analog 5V, 14.5V ~ 15.5V 5V ~ 15V 5V, 14.5V ~ 15.5V 5V, 14.5V ~ 15.5V
Voltage - Supply, Digital 5V, 14.5V ~ 15.5V 5V ~ 15V 5V, 14.5V ~ 15.5V 5V, 14.5V ~ 15.5V
INL/DNL (LSB) ±0.5 (Max), ±2.5 (Max) ±0.5 (Max), ±0.5 (Max) ±0.5 (Max), ±2.5 (Max) ±0.5 (Max), ±2.5 (Max)
Architecture R-2R R-2R R-2R R-2R
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C -25°C ~ 85°C 0°C ~ 70°C
Package / Case 20-LCC (J-Lead) 20-LCC (J-Lead) 20-LCC (J-Lead) 20-LCC (J-Lead)
Supplier Device Package 20-PLCC (9x9) 20-PLCC (9x9) 20-PLCC (9x9) 20-PLCC (9x9)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
