Please send RFQ , we will respond immediately.
| Part Number | TLC5945RHBR | TLC5946RHBR | TLC5947RHBR | TLC5945RHBT | TLC5940RHBR | TLC5941RHBR | TLC5942RHBR | TLC5943RHBR | TLC5944RHBR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key | Active | Obsolete |
| Type | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear |
| Topology | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 16 | 16 | 24 | 16 | 16 | 16 | 16 | 16 | 16 |
| Voltage - Supply (Min) | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 17V | 17V | 30V | 17V | 17V | 17V | 17V | 17V | 3V ~ 15V |
| Current - Output / Channel | 80mA | 40mA | 30mA | 80mA | 120mA | 80mA | 50mA | 50mA | 60mA |
| Frequency | 30MHz | 30MHz | 4MHz | 30MHz | 30MHz | - | 30MHz | 30MHz | 30MHz |
| Dimming | - | - | - | - | - | - | - | - | - |
| Applications | Backlight | Backlight, Signage | Backlight | Backlight | Backlight | Backlight, Signage | Backlight | Backlight | Signage |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

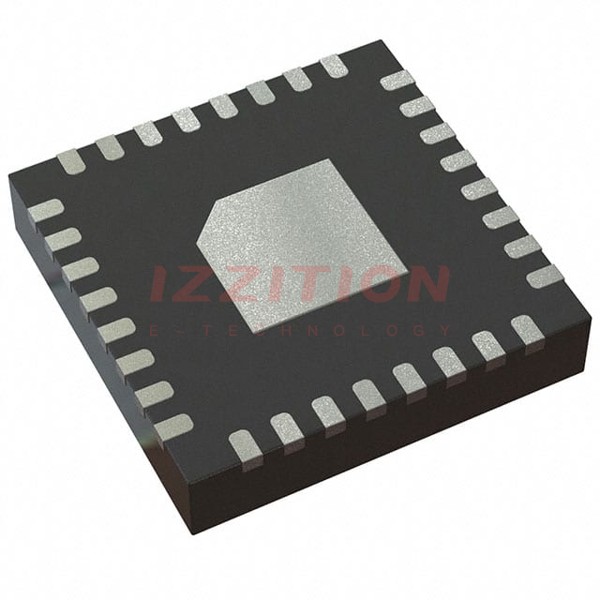

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) | 32-VQFN (5x5) |
