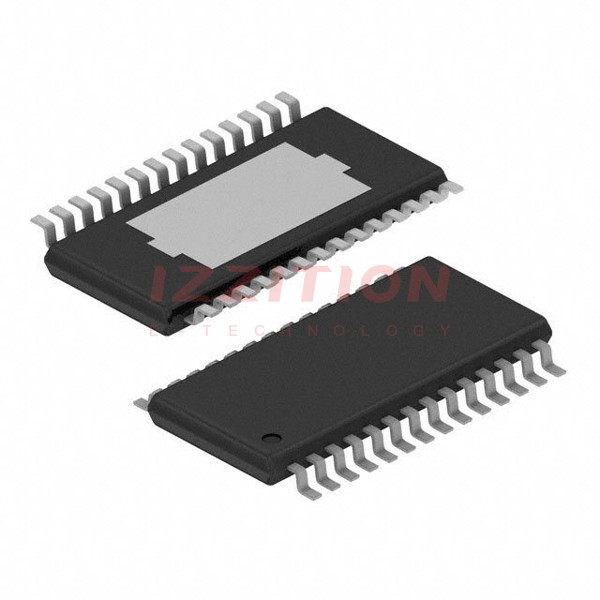

| Part Number | TLC5942PWPR | TLC5946PWPR | TLC5943PWPR | TLC5948PWPR | TLC5945PWPR | TLC5944PWPR | TLC5949PWPR | TLC5940PWPR | TLC5941PWPR | TLC5942PWP |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Type | Linear | Linear | Linear | - | Linear | Linear | Linear | Linear | Linear | Linear |
| Topology | Shift Register | Shift Register | Shift Register | - | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register |
| Internal Switch(s) | Yes | Yes | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 16 | 16 | 16 | - | 16 | 16 | 16 | 16 | 16 | 16 |
| Voltage - Supply (Min) | 3V | 3V | 3V | - | 3V | 3V | 3V | 3V | 3V | 3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | - | 5.5V | 5.5V | 3.6V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 17V | 17V | 17V | - | 17V | 3V ~ 15V | 10V | 17V | 17V | 17V |
| Current - Output / Channel | 50mA | 40mA | 50mA | - | 80mA | 60mA | 45mA | 120mA | 80mA | 50mA |
| Frequency | 30MHz | - | 30MHz | - | 30MHz | 30MHz | 33MHz | 30MHz | - | 30MHz |
| Dimming | - | - | - | - | - | - | PWM | - | - | - |
| Applications | Backlight | Backlight, Signage | Backlight | - | Backlight | Signage | Signage | Backlight | Backlight, Signage | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | - | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP | - | 28-HTSSOP | 28-HTSSOP | 24-HTSSOP | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP |
