Please send RFQ , we will respond immediately.

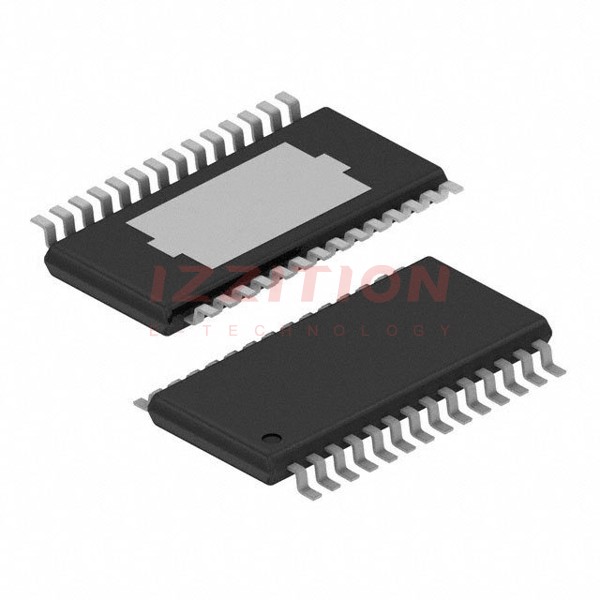

| Part Number | TLC5942PWP | TLC5946PWP | TLC5945PWP | TLC5949PWP | TLC5944PWP | TLC5943PWP | TLC5942PWPR | TLC5948PWP | TLC5940PWP | TLC5941PWP |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Obsolete | Active | Active |
| Type | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear |
| Topology | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Voltage - Supply (Min) | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3V | 3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 3.6V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 17V | 17V | 17V | 10V | 3V ~ 15V | 17V | 17V | 10V | 17V | 17V |
| Current - Output / Channel | 50mA | 40mA | 80mA | 45mA | 60mA | 50mA | 50mA | 60mA | 120mA | 80mA |
| Frequency | 30MHz | 30MHz | 30MHz | 33MHz | 30MHz | 30MHz | 30MHz | - | 30MHz | - |
| Dimming | - | - | - | PWM | - | - | - | - | - | - |
| Applications | Backlight | Backlight, Signage | Backlight | Signage | Signage | Backlight | Backlight | Signage | Backlight | Backlight, Signage |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP | 24-HTSSOP | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP | 24-HTSSOP | 28-HTSSOP | 28-HTSSOP |
