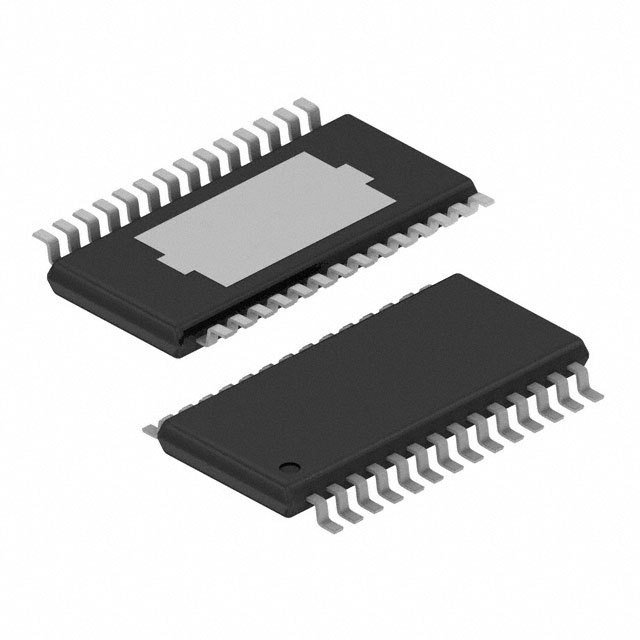

| Part Number | TLC5940PWPG4 | TLC5940PWPRG4 | TLC5941PWPG4 | TLC5945PWPG4 | TLC5942PWPG4 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Active | Discontinued at Digi-Key |
| Type | Linear | Linear | Linear | Linear | Linear |
| Topology | Shift Register | Shift Register | Shift Register | Shift Register | Shift Register |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 16 | 16 | 16 | 16 | 16 |
| Voltage - Supply (Min) | 3V | 3V | 3V | 3V | 3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 17V | 17V | 17V | 17V | 17V |
| Current - Output / Channel | 120mA | 120mA | 80mA | 80mA | 50mA |
| Frequency | 30MHz | 30MHz | - | 30MHz | 30MHz |
| Dimming | - | - | - | - | - |
| Applications | Backlight | Backlight | Backlight, Signage | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP |
