Please send RFQ , we will respond immediately.

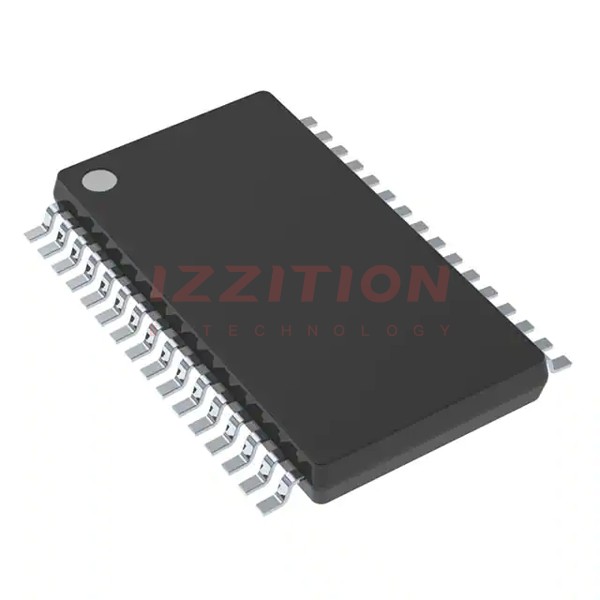

| Part Number | TLC5923DAPG4 | TLC5923DAPRG4 | TLC5921DAPG4 | TLC5922DAPG4 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | Linear | Linear | Linear | Linear |
| Topology | Shift Register | Shift Register | Shift Register | - |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 16 | 16 | 16 | 16 |
| Voltage - Supply (Min) | 3V | 3V | 4.5V | 3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 17V | 17V | 17V | 17V |
| Current - Output / Channel | 80mA | 80mA | 80mA | 80mA |
| Frequency | 30MHz | 30MHz | 20MHz | - |
| Dimming | - | - | - | - |
| Applications | Backlight | Backlight | - | Backlight, Lighting, Signage |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad |
| Supplier Device Package | 32-HTSSOP | 32-HTSSOP | 32-HTSSOP | 32-HTSSOP |
