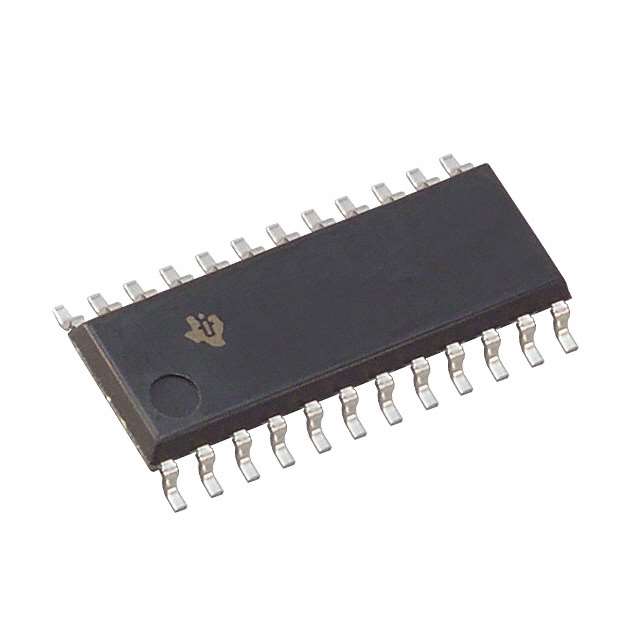

| Part Number | TLC5510INS | TLC5510INSR | TLC5540INS | TLC5510AINS |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 8 | 8 | 8 | 8 |
| Sampling Rate (Per Second) | 20M | 20M | 40M | 20M |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Architecture | Flash | Flash | Flash | Flash |
| Reference Type | Internal | Internal | External | Internal |
| Voltage - Supply, Analog | 5V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V |
| Features | - | - | - | - |
| Operating Temperature | 20°C ~ 75°C | 20°C ~ 75°C | -40°C ~ 85°C | 20°C ~ 75°C |
| Package / Case | 24-SOIC (0.209", 5.30mm Width) | 24-SOIC (0.209", 5.30mm Width) | 24-SOIC (0.209", 5.30mm Width) | 24-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SO | 24-SO | 24-SO | 24-SO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
