TLC1543INE4
  • Share:

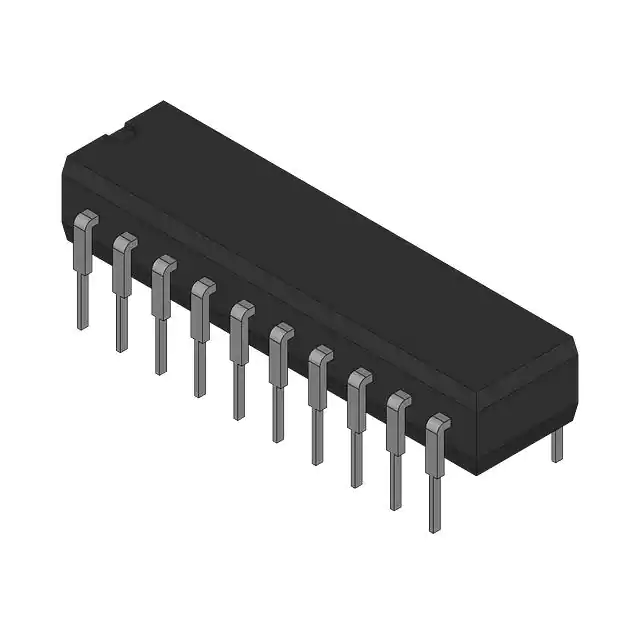

Texas Instruments TLC1543INE4

Manufacturer No:
TLC1543INE4
Manufacturer:
Texas Instruments
Package:
Bulk
Datasheet:
TLC1543INE4 Datasheet
ECAD Model:
-
Description:
IC ADC 10BIT SAR 20DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:10
Sampling Rate (Per Second):38k
Number of Inputs:11
Input Type:Single Ended
Data Interface:SPI
Configuration:MUX-S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:4.5V ~ 5.5V
Voltage - Supply, Digital:4.5V ~ 5.5V
Features:Selectable Address
Operating Temperature:-40°C ~ 85°C
Package / Case:20-DIP (0.300", 7.62mm)
Supplier Device Package:20-PDIP
Mounting Type:Through Hole
0 Remaining View Similar

In Stock

-
403

Please send RFQ , we will respond immediately.

Similar Products

Part Number TLC1543INE4 TLC1543ING4   TLC1542INE4
Manufacturer Texas Instruments Texas Instruments Texas Instruments
Product Status Active Discontinued at Digi-Key Active
Number of Bits 10 10 -
Sampling Rate (Per Second) 38k 38k -
Number of Inputs 11 11 -
Input Type Single Ended Single Ended -
Data Interface SPI SPI -
Configuration MUX-S/H-ADC MUX-S/H-ADC -
Ratio - S/H:ADC 1:1 1:1 -
Number of A/D Converters 1 1 -
Architecture SAR SAR -
Reference Type External External -
Voltage - Supply, Analog 4.5V ~ 5.5V 5V -
Voltage - Supply, Digital 4.5V ~ 5.5V 5V -
Features Selectable Address Selectable Address -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -
Package / Case 20-DIP (0.300", 7.62mm) 20-DIP (0.300", 7.62mm) -
Supplier Device Package 20-PDIP 20-PDIP -
Mounting Type Through Hole Through Hole -
