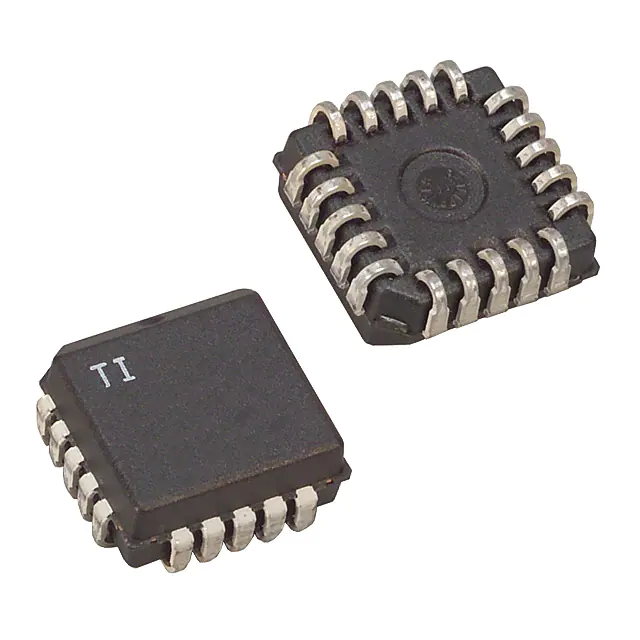

| Part Number | TLC1542CFN | TLC1543CFN | TLC1542CN | TLC1542QFN | TLC1541CFN |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Obsolete |
| Number of Bits | 10 | 10 | 10 | 10 | 10 |
| Sampling Rate (Per Second) | 38k | 38k | 38k | 38k | 32k |
| Number of Inputs | 11 | 11 | 11 | 11 | 11 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | SPI | SPI | SPI | SPI | SPI |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External | External | External | External | External |
| Voltage - Supply, Analog | 5V | 5V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | 5V |
| Features | Selectable Address | Selectable Address | Selectable Address | Selectable Address | Selectable Address |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (9x9) | 20-PDIP | 20-PLCC (9x9) | 20-PLCC (9x9) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount |
