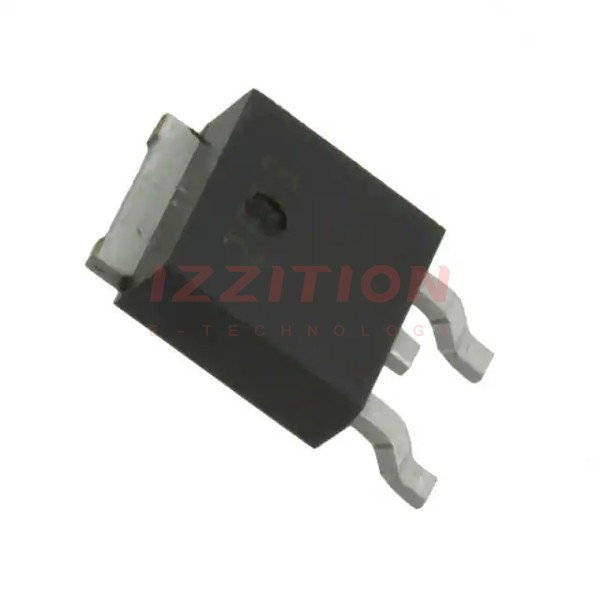

| Part Number | TL750L05CKTER | TL750L05CKTTR | TL750M05CKTER |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 26V | 26V | 26V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 150mA | 0.6V @ 150mA | 0.6V @ 750mA |
| Current - Output | 150mA | 150mA | 750mA |
| Current - Quiescent (Iq) | 2 mA | 2 mA | - |
| Current - Supply (Max) | 12 mA | 12 mA | - |
| PSRR | 65dB (120Hz) | 65dB (120Hz) | 55dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | Over Current, Over Temperature, Over Voltage, Reverse Polarity | Over Current, Over Temperature, Over Voltage, Reverse Polarity | Over Current, Over Temperature, Over Voltage, Reverse Polarity |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-4, DPak (3 Leads + Tab) | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-252-4, DPak (3 Leads + Tab) |
| Supplier Device Package | 3-PowerFLEX™ | DDPAK/TO-263-3 | 3-PowerFLEX™ |
