Please send RFQ , we will respond immediately.

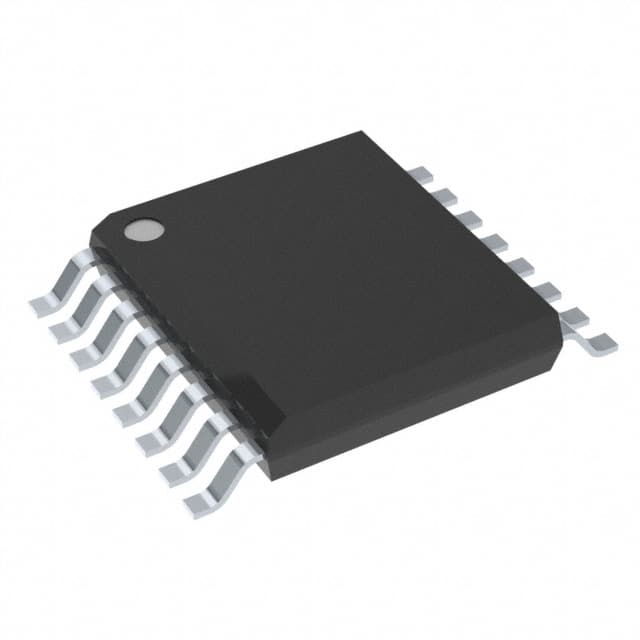

| Part Number | TL1454ACDB | TL1454ACDBR | TL1454ACDR | TL1454ACD |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Discontinued at Digi-Key | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Buck, Boost, Flyback | Buck, Boost, Flyback | Buck, Boost, Flyback | Buck, Boost, Flyback |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Output Phases | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.6V ~ 20V | 3.6V ~ 20V | 3.6V ~ 20V | 3.6V ~ 20V |
| Frequency - Switching | 50kHz ~ 2MHz | 50kHz ~ 2MHz | 50kHz ~ 2MHz | 50kHz ~ 2MHz |
| Duty Cycle (Max) | 100% | 100% | 100% | 100% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Clock Sync | No | No | No | No |
| Serial Interfaces | - | - | - | - |
| Control Features | Dead Time Control, Frequency Control | Dead Time Control, Frequency Control | Dead Time Control, Frequency Control | Dead Time Control, Frequency Control |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) | 16-SSOP (0.209", 5.30mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SSOP | 16-SSOP | 16-SOIC | 16-SOIC |
