| Part Number | TL061MLB | TL062MLB | TL051MLB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Amplifier Type | J-FET | J-FET | J-FET |
| Number of Circuits | 1 | 2 | 1 |
| Output Type | - | - | - |
| Slew Rate | 3.5V/µs | 3.5V/µs | - |
| Gain Bandwidth Product | 1 MHz | 1 MHz | - |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 30 pA | 30 pA | - |
| Voltage - Input Offset | 3 mV | 3 mV | - |
| Current - Supply | 200µA | 200µA (x2 Channels) | - |
| Current - Output / Channel | - | - | - |
| Voltage - Supply Span (Min) | 10 V | 10 V | - |
| Voltage - Supply Span (Max) | 30 V | 30 V | - |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |

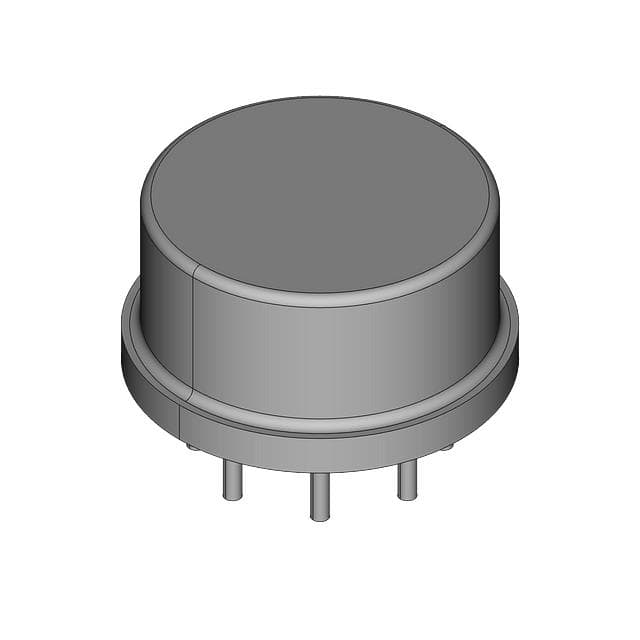

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 |
