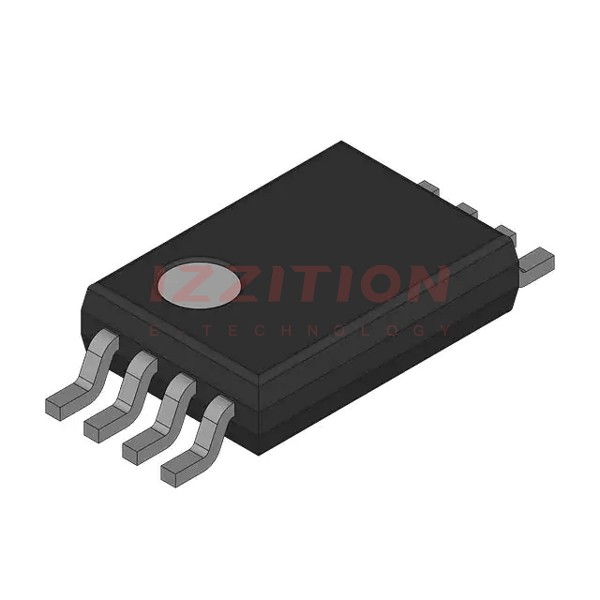

| Part Number | THS4130IDGKR | THS4130IDGNR | THS4131IDGKR | THS4140IDGKR | THS4150IDGKR | THS4120IDGKR | THS4130CDGKR | THS4130IDGK |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Amplifier Type | Differential | Differential | Differential | Differential | Differential | Differential | Differential | Differential |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | Differential | Differential | Differential | Differential | Differential | Differential | Differential | Differential |
| Slew Rate | 52V/µs | 52V/µs | 52V/µs | 450V/µs | 650V/µs | 55V/µs | 52V/µs | 52V/µs |
| Gain Bandwidth Product | 225 MHz | 225 MHz | 225 MHz | 205 MHz | 340 MHz | - | 225 MHz | 225 MHz |
| -3db Bandwidth | 150 MHz | 150 MHz | 150 MHz | 160 MHz | 150 MHz | 100 MHz | 150 MHz | 150 MHz |
| Current - Input Bias | 2 µA | 2 µA | 2 µA | 5.1 µA | 4.3 µA | 1.2 pA | 2 µA | 2 µA |
| Voltage - Input Offset | 200 µV | 200 µV | 200 µV | 1 mV | 1.1 mV | 3 mV | 200 µV | 200 µV |
| Current - Supply | 12.3mA | 12.3mA | 12.3mA | 13.2mA | 17.5mA | 11mA | 14mA | 12.3mA |
| Current - Output / Channel | 85 mA | 85 mA | 85 mA | 85 mA | 85 mA | 100 mA | 85 mA | 85 mA |
| Voltage - Supply Span (Min) | 4 V | 4 V | 4 V | 4 V | 4 V | 3 V | 5 V | 4 V |
| Voltage - Supply Span (Max) | 33 V | 33 V | 33 V | 33 V | 33 V | 3.5 V | 30 V | 33 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP | 8-HVSSOP | 8-VSSOP | 8-VSSOP | 8-VSSOP | 8-VSSOP | 8-VSSOP | 8-VSSOP |
