TAS5709PHPR
  • Share:

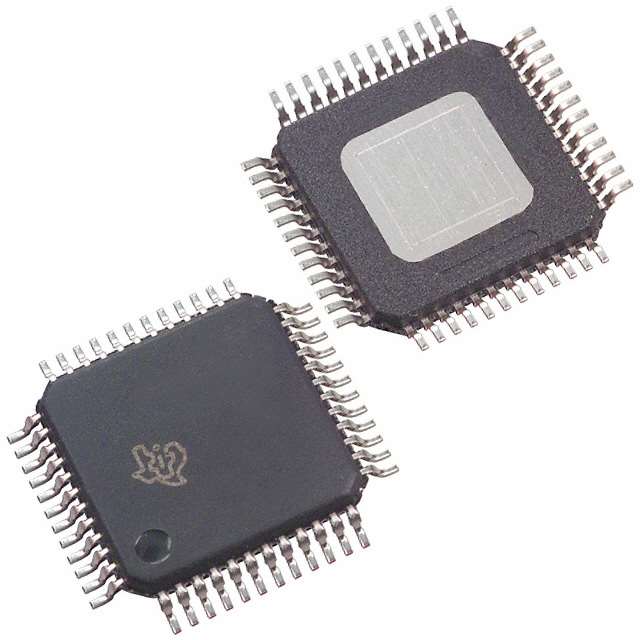

Texas Instruments TAS5709PHPR

Manufacturer No:
TAS5709PHPR
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
TAS5709PHPR Datasheet
ECAD Model:
-
Description:
IC AMP CLSS D STER 20.6W 48HTQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Class D
Output Type:2-Channel (Stereo)
Max Output Power x Channels @ Load:20.6W x 2 @ 8Ohm
Voltage - Supply:8V ~ 24V
Features:
Mounting Type:Surface Mount
Operating Temperature:0°C ~ 85°C (TA)
Supplier Device Package:48-HTQFP (7x7)
Package / Case:48-PowerTQFP
0 Remaining View Similar

In Stock

$4.44
143

Please send RFQ , we will respond immediately.

Similar Products

Part Number TAS5709PHPR TAS5719PHPR   TAS5707PHPR   TAS5708PHPR   TAS5709APHPR   TAS5709PHP
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Not For New Designs Active Active Active
Type Class D Class D Class D Class D Class D Class D
Output Type 2-Channel (Stereo) 2-Channel (Stereo) with Stereo Headphones 2-Channel (Stereo) 2-Channel (Stereo) 2-Channel (Stereo) 2-Channel (Stereo)
Max Output Power x Channels @ Load 20.6W x 2 @ 8Ohm 15W x 2 @ 8Ohm 20.6W x 2 @ 8Ohm 20.2W x 2 @ 8Ohm 20.6W x 2 @ 8Ohm 20.6W x 2 @ 8Ohm
Voltage - Supply 8V ~ 24V 3V ~ 3.6V 8V ~ 24V 10V ~ 26V 8V ~ 24V 8V ~ 24V
Features Depop, Differential Inputs, I²C, Shutdown, Thermal Protection, Volume Control Depop, Digital Inputs, I²C, I²S, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Operating Temperature 0°C ~ 85°C (TA) 0°C ~ 85°C (TA) 0°C ~ 85°C (TA) 0°C ~ 85°C (TA) 0°C ~ 85°C (TA) 0°C ~ 85°C (TA)
Supplier Device Package 48-HTQFP (7x7) 48-HTQFP (7x7) 48-HTQFP (7x7) 48-HTQFP (7x7) 48-HTQFP (7x7) 48-HTQFP (7x7)
Package / Case 48-PowerTQFP 48-PowerTQFP 48-PowerTQFP 48-PowerTQFP 48-PowerTQFP 48-PowerTQFP
