| Part Number | TAS5616PHD | TAS5616PHDR | TAS5611PHD | TAS5612PHD | TAS5613PHD | TAS5614PHD | TAS5615PHD |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | Class D | Class D | Class D | Class D | Class D | Class D | Class D |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) | 1-Channel (Mono) or 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 300W x 1 @ 4Ohm; 160W x 2 @ 8Ohm | 300W x 1 @ 4Ohm; 160W x 2 @ 8Ohm | 250W x 1 @ 2Ohm; 165W x 2 @ 3Ohm | 250W x 1 @ 2Ohm; 165W x 2 @ 3Ohm | 300W x 1 @ 2Ohm; 200W x 2 @ 3Ohm | 300W x 1 @ 2Ohm; 200W x 2 @ 3Ohm | 300W x 1 @ 4Ohm; 160W x 2 @ 8Ohm |
| Voltage - Supply | 25V ~ 52.5V | 25V ~ 52.5V | 16V ~ 34.1V | 16V ~ 34.1V | 18V ~ 38V | 18V ~ 38V | 25V ~ 52.5V |
| Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | Depop, Digital Inputs, Short-Circuit and Thermal Protection, Shutdown | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown | Depop, Digital Inputs, Short-Circuit and Thermal Protection, Shutdown | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |

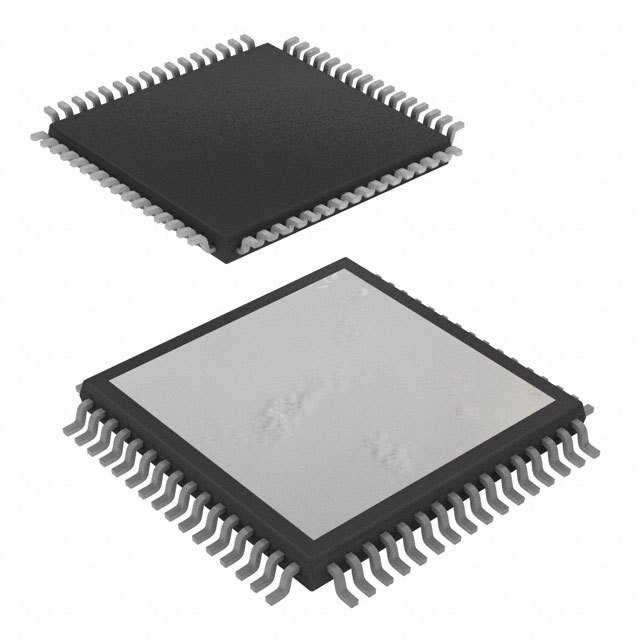

| Supplier Device Package | 64-HTQFP (14x14) | 64-HTQFP (14x14) | 64-HTQFP (14x14) | 64-HTQFP (14x14) | 64-HTQFP (14x14) | 64-HTQFP (14x14) | 64-HTQFP (14x14) |
| Package / Case | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad |
