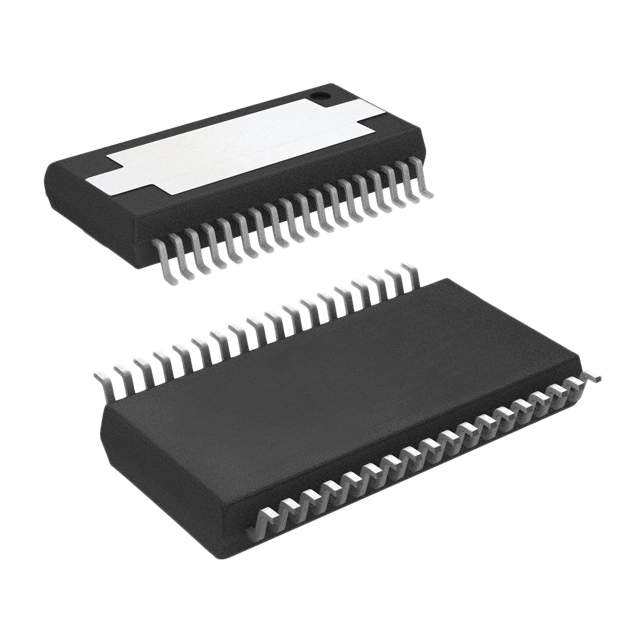

| Part Number | TAS5414ATDKDMQ1 | TAS5424ATDKDMQ1 | TAS5414ATDKDRMQ1 | TAS5414ATDKDRQ1 | TAS5414ATDKDQ1 | TAS5414TDKDMQ1 |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Not For New Designs | Active | Not For New Designs | Not For New Designs | Not For New Designs | Discontinued at Digi-Key |
| Type | Class D | Class D | Class D | Class D | Class D | Class D |
| Output Type | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) | 4-Channel (Quad) |
| Max Output Power x Channels @ Load | 116W x 2 @ 2Ohm, 58W x 4 @ 4Ohm | 116W x 2 @ 2Ohm, 58W x 4 @ 4Ohm | 116W x 2 @ 2Ohm, 58W x 4 @ 4Ohm | 116W x 2 @ 2Ohm, 58W x 4 @ 4Ohm | 116W x 2 @ 2Ohm, 58W x 4 @ 4Ohm | 116W x 2 @ 2Ohm, 58W x 4 @ 4Ohm |
| Voltage - Supply | 8V ~ 22V | 8V ~ 22V | 8V ~ 22V | 8V ~ 22V | 8V ~ 22V | 8V ~ 22V |
| Features | Depop, I²C, Mute, Short-Circuit and Thermal Protection, Shutdown | Depop, Differential Inputs, I²C, Mute, Short-Circuit and Thermal Protection, Shutdown | Depop, I²C, Mute, Short-Circuit and Thermal Protection, Shutdown | Depop, I²C, Mute, Short-Circuit and Thermal Protection, Shutdown | Depop, I²C, Mute, Short-Circuit and Thermal Protection, Shutdown | Depop, I²C, Mute, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Supplier Device Package | 36-HSSOP | 44-HSSOP | 36-HSSOP | 36-HSSOP | 36-HSSOP | 36-HSSOP |
| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 44-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad |
