Please send RFQ , we will respond immediately.

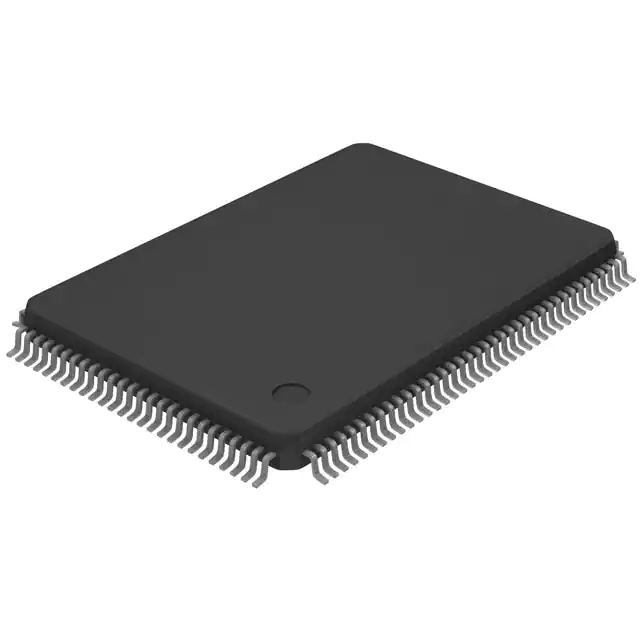

| Part Number | SN74V3670-10PEU | SN74V3670-15PEU | SN74V3680-10PEU | SN74V3690-10PEU | SN74V3640-10PEU | SN74V3650-10PEU | SN74V3660-10PEU |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Memory Size | 288K (8K x 36) | 288K (8K x 36) | 576K (16K x 36) | 1.125M (32K x 36) | 36K (1K x 36) | 72K (2K x 36) | 144K (4K x 36) |
| Function | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous | Synchronous |
| Data Rate | 100MHz | 66.7MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Access Time | 6.5ns | 10ns | 6.5ns | 6.5ns | 6.5ns | 6.5ns | 6.5ns |
| Voltage - Supply | 3.15 V ~ 3.45 V | 3.15 V ~ 3.45 V | 3.15 V ~ 3.45 V | 3.15 V ~ 3.45 V | 3.15 V ~ 3.45 V | 3.15 V ~ 3.45 V | 3.15 V ~ 3.45 V |
| Current - Supply (Max) | 40mA | 40mA | 40mA | 40mA | 40mA | 40mA | 40mA |
| Bus Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional | Uni-Directional |
| Expansion Type | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width | Depth, Width |
| Programmable Flags Support | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Retransmit Capability | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| FWFT Support | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 128-LQFP | 128-LQFP | 128-LQFP | 128-LQFP | 128-LQFP | 128-LQFP | 128-LQFP |
| Supplier Device Package | 128-LQFP (20x14) | 128-LQFP (20x14) | 128-LQFP (20x14) | 128-LQFP (20x14) | 128-LQFP (20x14) | 128-LQFP (20x14) | 128-LQFP (20x14) |
