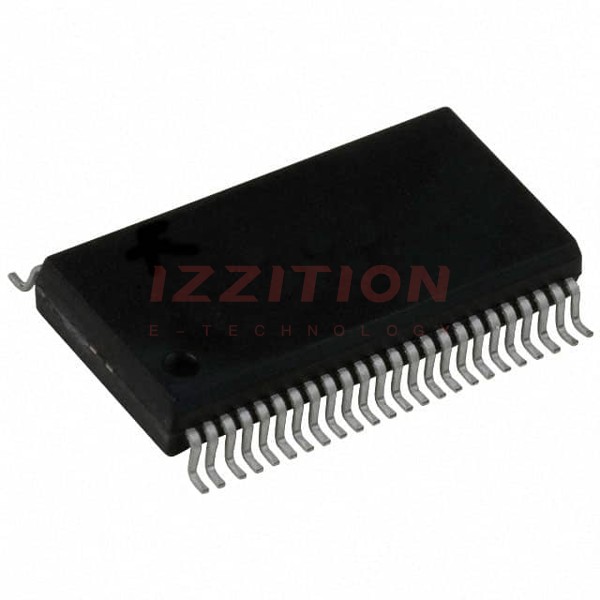

| Part Number | SN74LVCH16540ADGGR | SN74LVCH16541ADGGR | SN74LVCH16543ADGGR | SN74LVCH16540ADGVR | SN74LVCH16240ADGGR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Obsolete | Active |
| Logic Type | Buffer, Inverting | Buffer, Non-Inverting | Transceiver, Non-Inverting | Buffer, Inverting | Buffer, Inverting |
| Number of Elements | 2 | 2 | 2 | 2 | 4 |
| Number of Bits per Element | 8 | 8 | 8 | 8 | 4 |
| Input Type | - | - | - | - | - |
| Output Type | 3-State | 3-State | 3-State | 3-State | 3-State |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.173", 4.40mm Width) | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP | 48-TSSOP | 56-TSSOP | 48-TVSOP | 48-TSSOP |
