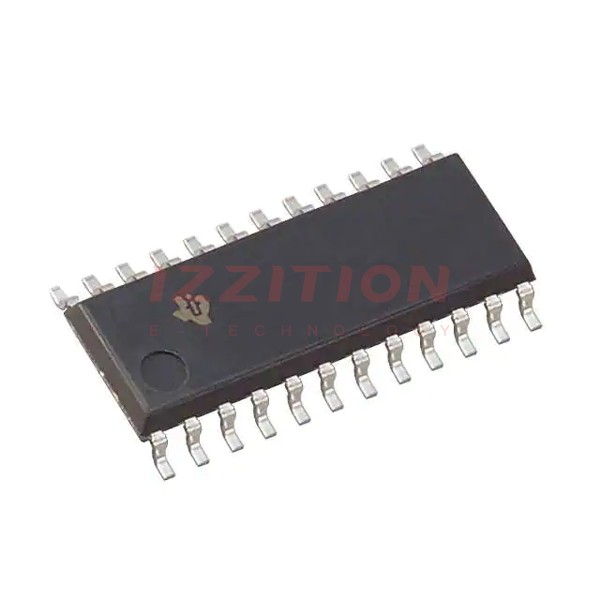

| Part Number | SN74LVC823ANSRE4 | SN74LVC823ANSRG4 | SN74LVC821ANSRE4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Master Reset | Master Reset | Standard |
| Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 1 | 1 | 1 |
| Number of Bits per Element | 9 | 9 | 10 |
| Clock Frequency | 150 MHz | 150 MHz | 150 MHz |
| Max Propagation Delay @ V, Max CL | 8ns @ 3.3V, 50pF | 8ns @ 3.3V, 50pF | 7.3ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 10 µA | 10 µA | 10 µA |
| Input Capacitance | 5 pF | 5 pF | 5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 24-SO | 24-SO | 24-SO |
| Package / Case | 24-SOIC (0.209", 5.30mm Width) | 24-SOIC (0.209", 5.30mm Width) | 24-SOIC (0.209", 5.30mm Width) |
