Please send RFQ , we will respond immediately.

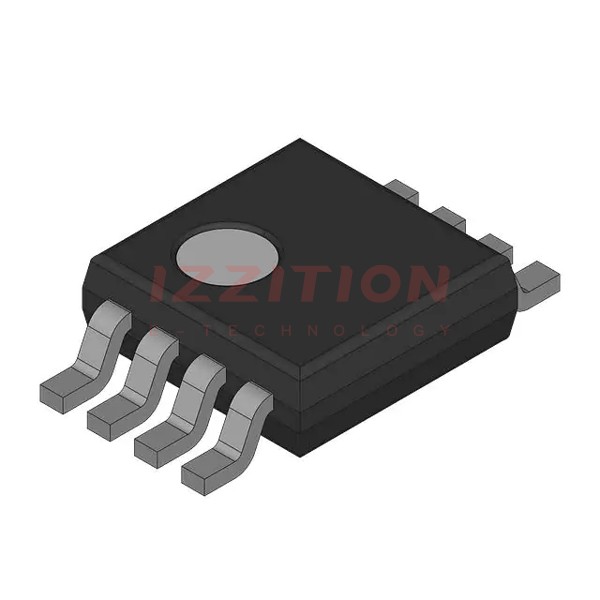

| Part Number | SN74LVC3G14DCUTG4 | SN74LVC3G04DCUTG4 | SN74LVC3G14DCURG4 | SN74LVC3G14DCUTE4 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Discontinued at Digi-Key | Obsolete |
| Logic Type | - | Inverter | Inverter | Inverter |
| Number of Circuits | - | 3 | 3 | 3 |
| Number of Inputs | - | 3 | 3 | 3 |
| Features | - | - | Schmitt Trigger | Schmitt Trigger |
| Voltage - Supply | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | - | 10 µA | 10 µA | 10 µA |
| Current - Output High, Low | - | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | 0.7V ~ 0.8V | 0.3V ~ 1.4V | 0.3V ~ 1.4V |
| Logic Level - High | - | 1.7V ~ 2V | 1.4V ~ 3.7V | 1.4V ~ 3.7V |
| Max Propagation Delay @ V, Max CL | - | 3.2ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 8-VSSOP | 8-VSSOP | 8-VSSOP |
| Package / Case | - | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) |
