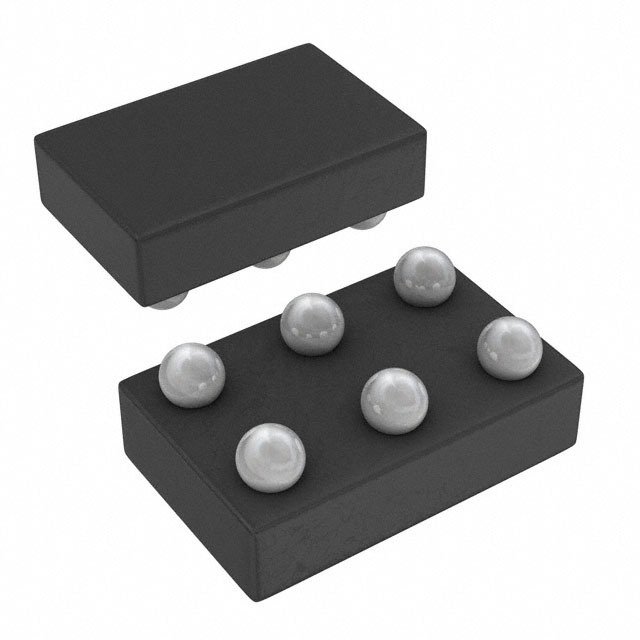

| Part Number | SN74LVC2G04YEAR | SN74LVC2G04YZAR | SN74LVC2G06YEAR | SN74LVC2GU04YEAR | SN74LVC2G14YEAR | SN74LVC2G08YEAR | SN74LVC2G04YEPR | SN74LVC2G00YEAR | SN74LVC2G02YEAR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | Inverter | Inverter | Inverter | AND Gate | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Features | - | - | Open Drain | - | Schmitt Trigger | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | -, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - | 0.3V ~ 1.4V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | - | 1.4V ~ 3.7V | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.2ns @ 5V, 50pF | 3.2ns @ 5V, 50pF | 2.9ns @ 5V, 50pF | 3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 3.8ns @ 5V, 50pF | 3.2ns @ 5V, 50pF | 3.3ns @ 5V, 50pF | 4.4ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-DSBGA | 6-DSBGA | 6-DSBGA | 6-DSBGA | 6-DSBGA | 5-DSBGA (1.4x0.9) | 6-DSBGA | 8-XFBGA, DSBGA | 8-XFBGA, DSBGA |
| Package / Case | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 5-XFBGA, DSBGA | 6-XFBGA, DSBGA | 8-XFBGA, DSBGA | 8-XFBGA, DSBGA |
