Please send RFQ , we will respond immediately.

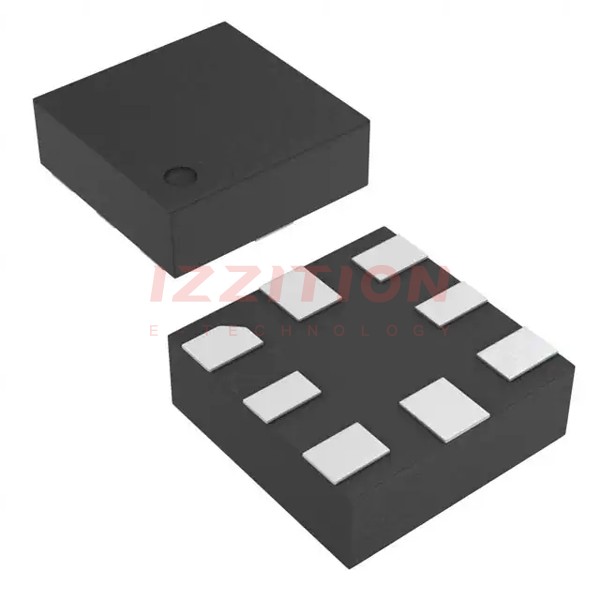

| Part Number | SN74LVC1G74RSE2 | SN74LVC1G74RSER |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Function | Set(Preset) and Reset | Set(Preset) and Reset |
| Type | D-Type | D-Type |
| Output Type | Complementary | Complementary |
| Number of Elements | 1 | 1 |
| Number of Bits per Element | 1 | 1 |
| Clock Frequency | 200 MHz | 200 MHz |
| Max Propagation Delay @ V, Max CL | 4.4ns @ 5V, 50pF | 4.4ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Iq) | 10 µA | 10 µA |
| Input Capacitance | 5 pF | 5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-UQFN (1.5x1.5) | 8-UQFN (1.5x1.5) |
| Package / Case | 8-UFQFN | 8-UFQFN |
