Texas Instruments-SN74LVC1G32QDRYRQ1 - Logic - Gates and Inverters Product Specifications and Latest Quotes

Logic Type:	OR Gate
Number of Circuits:	1
Number of Inputs:	2
Features:	-
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	10 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	0.7V ~ 0.8V
Logic Level - High:	1.7V ~ 2V
Max Propagation Delay @ V, Max CL:	4.5ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	6-SON (1.45x1)
Package / Case:	6-UFDFN

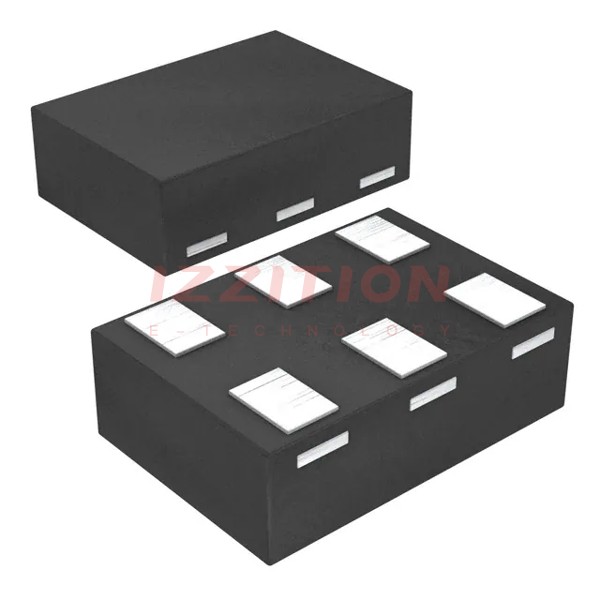

Texas Instruments SN74LVC1G32QDRYRQ1
