Texas Instruments-SN74LVC1G14QDRYRQ1 - Logic - Gates and Inverters Product Specifications and Latest Quotes

Logic Type:	Inverter
Number of Circuits:	1
Number of Inputs:	1
Features:	Schmitt Trigger
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	10 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	0.64V ~ 2.29V
Logic Level - High:	1.16V ~ 3.33V
Max Propagation Delay @ V, Max CL:	6ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	6-SON (1.45x1)
Package / Case:	6-UFDFN

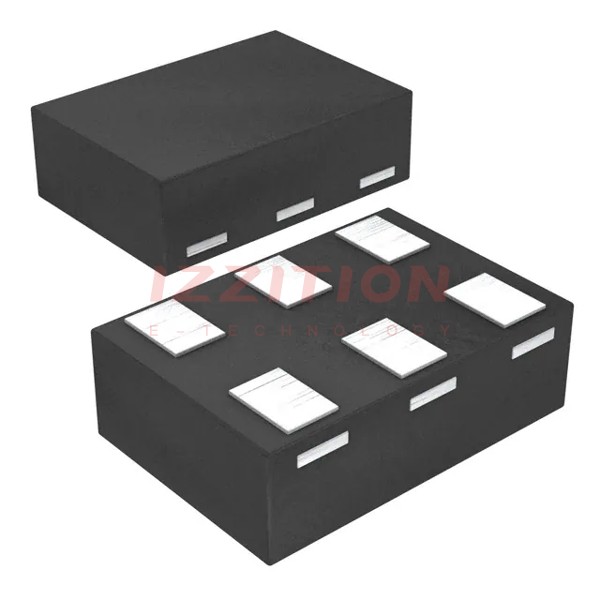

Texas Instruments SN74LVC1G14QDRYRQ1
