Please send RFQ , we will respond immediately.
| Part Number | SN74LVC1G04YZAR | SN74LVC1G04YZPR | SN74LVC1G04YZVR | SN74LVC1G14YZAR | SN74LVC1G08YZAR | SN74LVC1G04YZTR | SN74LVC1G00YZAR | SN74LVC1G02YZAR | SN74LVC1G04YEAR |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | Inverter | Inverter | AND Gate | Inverter | NAND Gate | NOR Gate | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 1 |
| Features | - | - | - | Schmitt Trigger | - | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.39V ~ 1.87V | - | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | 1.16V ~ 3.33V | - | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.7ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 5ns @ 5V, 50pF | 4ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 4ns @ 5V, 50pF | 4ns @ 5V, 50pF | 3.7ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

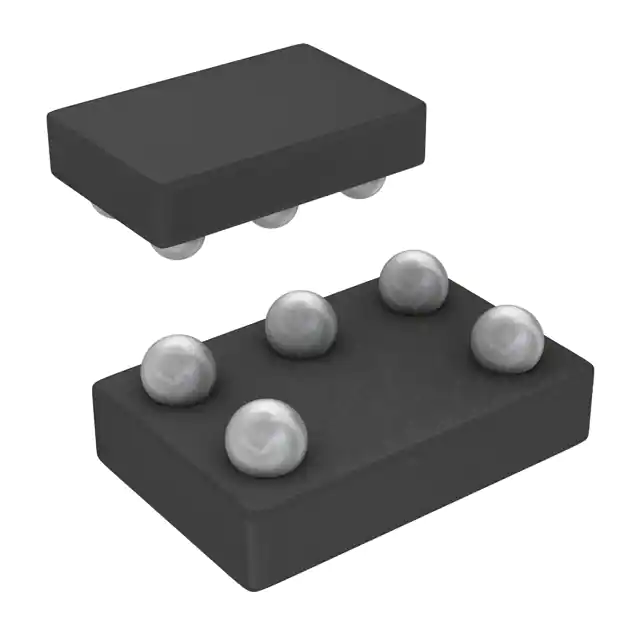

| Supplier Device Package | 5-DSBGA (1.4x0.9) | 5-DSBGA (1.4x0.9) | 4-DSBGA (0.88x0.88) | 5-DSBGA (1.4x0.9) | 5-DSBGA (1.4x0.9) | 5-DSBGA (1.4x0.9) | 5-DSBGA (1.4x0.9) | 5-DSBGA (1.4x0.9) | 5-DSBGA (1.4x0.9) |
| Package / Case | 5-XFBGA, DSBGA | 5-XFBGA, DSBGA | 4-XFBGA, DSBGA | 5-XFBGA, DSBGA | 5-XFBGA, DSBGA | 5-XFBGA, DSBGA | 5-XFBGA, DSBGA | 5-XFBGA, DSBGA | 5-XFBGA, DSBGA |
