Please send RFQ , we will respond immediately.

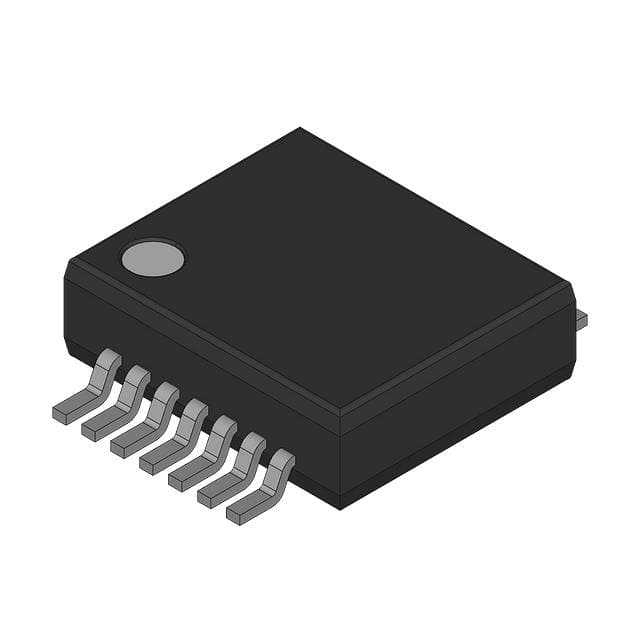

| Part Number | SN74LVC08ADB | SN74LVC08ADT | SN74LVC08ADBR | SN74LVC08ADR | SN74LVC00ADB | SN74LVC02ADB | SN74LVC08AD |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | - | AND Gate | AND Gate | AND Gate | - | - | AND Gate |
| Number of Circuits | - | 4 | 4 | 4 | - | - | 4 |
| Number of Inputs | - | 2 | 2 | 2 | - | - | 2 |
| Features | - | - | - | - | - | - | - |
| Voltage - Supply | - | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V | - | - | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | - | 1 µA | 1 µA | 1 µA | - | - | 1 µA |
| Current - Output High, Low | - | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | - | - | 24mA, 24mA |
| Logic Level - Low | - | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - | - | 0.7V ~ 0.8V |
| Logic Level - High | - | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | - | - | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | - | 3.9ns @ 3.3V, 50pF | 3.9ns @ 3.3V, 50pF | 3.9ns @ 3.3V, 50pF | - | - | 3.9ns @ 3.3V, 50pF |
| Operating Temperature | - | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | - | - | -40°C ~ 125°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | - | - | Surface Mount |
| Supplier Device Package | - | 14-SOIC | 14-SSOP | 14-SOIC | - | - | 14-SOIC |
| Package / Case | - | 14-SOIC (0.154", 3.90mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SOIC (0.154", 3.90mm Width) | - | - | 14-SOIC (0.154", 3.90mm Width) |
