| Part Number | SN74LV4052ARGYR | SN74LV4053ARGYR | SN74LV4051ARGYR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Switch Circuit | SP4T | SPDT | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 2:1 | 8:1 |
| Number of Circuits | 2 | 3 | 1 |
| On-State Resistance (Max) | 75Ohm | 75Ohm | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 700mOhm | 1.3Ohm | 1.3Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 14ns, 14ns | 14ns, 14ns | 14ns, 14ns |
| -3db Bandwidth | 50MHz | 50MHz | 35MHz |
| Charge Injection | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 0.5pF, 13.1pF | 0.5pF, 8.2pF | 0.5pF, 23.4pF |
| Current - Leakage (IS(off)) (Max) | 100nA | 100nA | 100nA |
| Crosstalk | -45dB @ 1MHz | -45dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

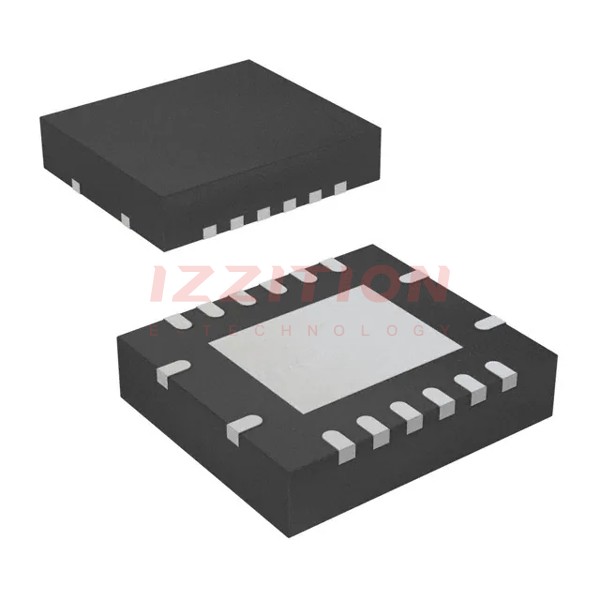

| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (4x3.5) | 16-VQFN (4x3.5) | 16-VQFN (4x3.5) |
