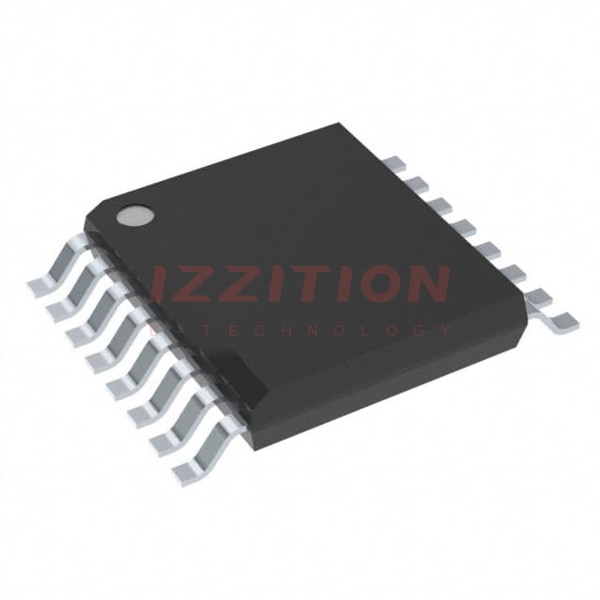

| Part Number | SN74LV175ADBR | SN74LV175ADR | SN74LV174ADBR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete |
| Function | Master Reset | Master Reset | Master Reset |
| Type | D-Type | D-Type | D-Type |
| Output Type | Complementary | Complementary | Non-Inverted |
| Number of Elements | 1 | 1 | 1 |
| Number of Bits per Element | 4 | 4 | 6 |
| Clock Frequency | 165 MHz | 165 MHz | 180 MHz |
| Max Propagation Delay @ V, Max CL | 9.3ns @ 5V, 50pF | 9.3ns @ 5V, 50pF | 9.2ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 12mA, 12mA | 12mA, 12mA | 12mA, 12mA |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Iq) | 20 µA | 20 µA | 20 µA |
| Input Capacitance | 1.4 pF | 1.4 pF | 1.7 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 16-SSOP | 16-SOIC | 16-SSOP |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SSOP (0.209", 5.30mm Width) |
