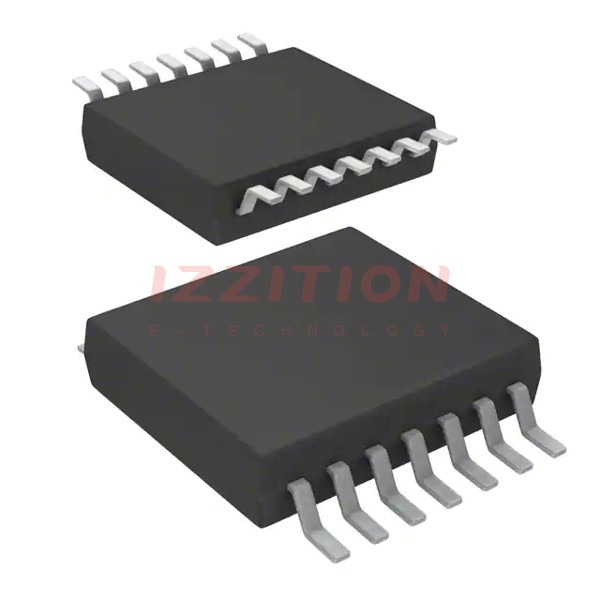

| Part Number | SN74LV04ADGVR | SN74LV08ADGVR | SN74LV06ADGVR | SN74LV05ADGVR | SN74LV00ADGVR | SN74LV02ADGVR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | Inverter | AND Gate | Inverter | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 6 | 4 | 6 | 6 | 4 | 4 |
| Number of Inputs | 1 | 2 | 1 | 1 | 2 | 2 |
| Features | - | - | Open Drain | Open Drain | - | - |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 20 µA | 20 µA | 20 µA | 20 µA | 20 µA | 20 µA |
| Current - Output High, Low | 12mA, 12mA | 12mA, 12mA | -, 16mA | -, 12mA | 12mA, 12mA | 12mA, 12mA |
| Logic Level - Low | 0.5V | 0.5V | 0.5V | 0.5V | 0.5V | 0.5V |
| Logic Level - High | 1.5V | 1.5V | 1.5V | 1.5V | 1.5V | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-TVSOP | 14-TVSOP | 14-TVSOP | 14-TVSOP | 14-TVSOP | 14-TVSOP |
| Package / Case | 14-TFSOP (0.173", 4.40mm Width) | 14-TFSOP (0.173", 4.40mm Width) | 14-TFSOP (0.173", 4.40mm Width) | 14-TFSOP (0.173", 4.40mm Width) | 14-TFSOP (0.173", 4.40mm Width) | 14-TFSOP (0.173", 4.40mm Width) |
