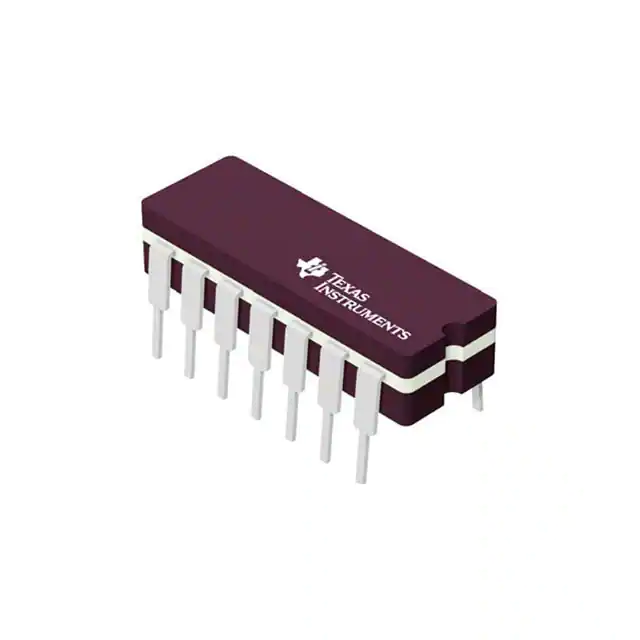

| Part Number | SN74LS266N | SN74LS26N | SN74LS266NS | SN74LS266D |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Logic Type | XNOR (Exclusive NOR) | NAND Gate | - | XNOR (Exclusive NOR) |
| Number of Circuits | 4 | 4 | - | 4 |
| Number of Inputs | 2 | 2 | - | 2 |
| Features | Open Collector | Open Collector | - | Open Collector |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 13 mA | - | - | 13 mA |
| Current - Output High, Low | -, 8mA | -, 8mA | - | -, 8mA |
| Logic Level - Low | 0.8V | 0.8V | - | 0.8V |
| Logic Level - High | 2V | 2V | - | 2V |
| Max Propagation Delay @ V, Max CL | 30ns @ 5V, 15pF | 32ns @ 5V, 15pF | - | 30ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | - | Surface Mount |
| Supplier Device Package | 14-PDIP | 14-PDIP | - | 14-SOIC |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | - | 14-SOIC (0.154", 3.90mm Width) |
