Please send RFQ , we will respond immediately.

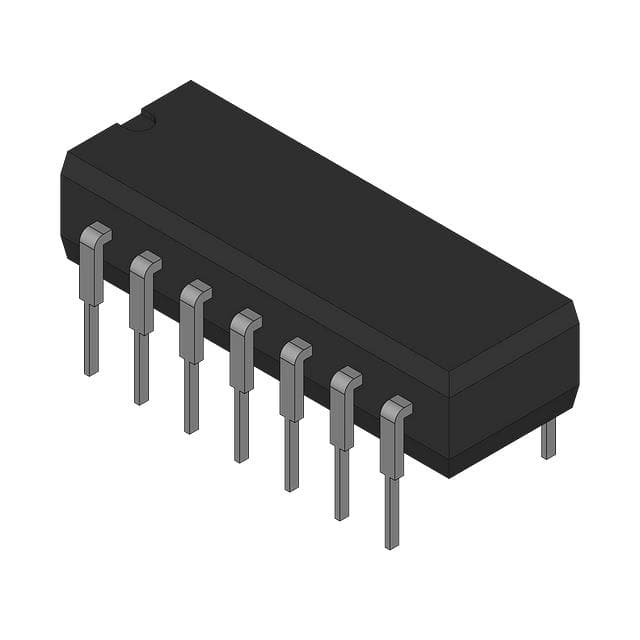

| Part Number | SN74HCT08NE4 | SN74HCT08NG4 | SN74HCT08DE4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Logic Type | NOR Gate | AND Gate | AND Gate |
| Number of Circuits | 2 | 4 | 4 |
| Number of Inputs | 4 | 2 | 2 |
| Features | - | - | - |
| Voltage - Supply | 2V ~ 6V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 20ns @ 6V, 50pF | 22ns @ 5.5V, 50pF | 22ns @ 5.5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | 14-PDIP | 14-PDIP | 14-SOIC |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
