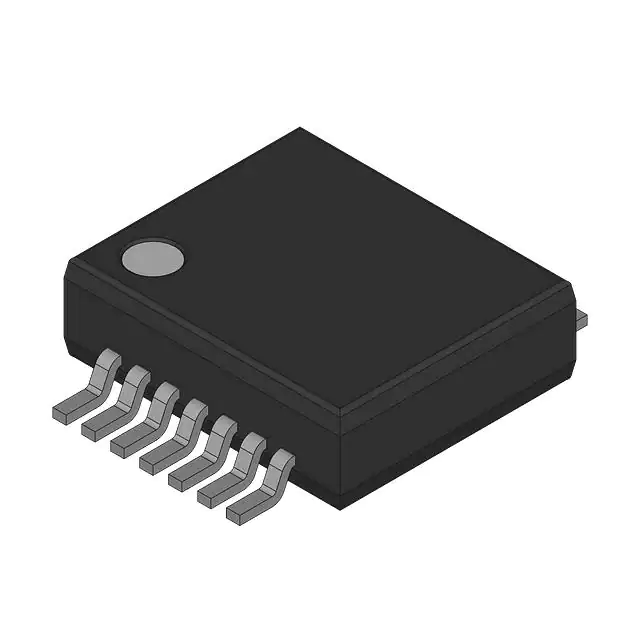

| Part Number | SN74HCT04DBR | SN74HCT14DBR | SN74HCT04DR | SN74HCT08DBR | SN74HCU04DBR | SN74HCT00DBR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Logic Type | Inverter | Inverter | Inverter | AND Gate | Inverter | NAND Gate |
| Number of Circuits | 6 | 6 | 6 | 4 | 6 | 4 |
| Number of Inputs | 1 | 1 | 1 | 2 | 1 | 2 |
| Features | - | Schmitt Trigger | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 6V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 5.2mA, 5.2mA | 4mA, 4mA |
| Logic Level - Low | 0.8V | 0.5V ~ 0.6V | 0.8V | 0.8V | 0.5V ~ 1.8V | 0.8V |
| Logic Level - High | 2V | 1.9V ~ 2.1V | 2V | 2V | 1.7V ~ 4.8V | 2V |
| Max Propagation Delay @ V, Max CL | 18ns @ 5.5V, 50pF | 30ns @ 5.5V, 50pF | 18ns @ 5.5V, 50pF | 22ns @ 5.5V, 50pF | 14ns @ 6V, 50pF | 18ns @ 5.5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SSOP | 14-SSOP | 14-SOIC | 14-SSOP | 14-SSOP | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SOIC (0.154", 3.90mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) |
