Texas Instruments-SN74HCS86QBQARQ1 - Logic - Gates and Inverters Product Specifications and Latest Quotes

Logic Type:	XOR (Exclusive OR)
Number of Circuits:	4
Number of Inputs:	2
Features:	Schmitt Trigger Input
Voltage - Supply:	2V ~ 6V
Current - Quiescent (Max):	2 µA
Current - Output High, Low:	7.8mA, 7.8mA
Logic Level - Low:	1V ~ 3V
Logic Level - High:	1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL:	12ns @ 6V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-WQFN (3x2.5)
Package / Case:	14-WFQFN Exposed Pad

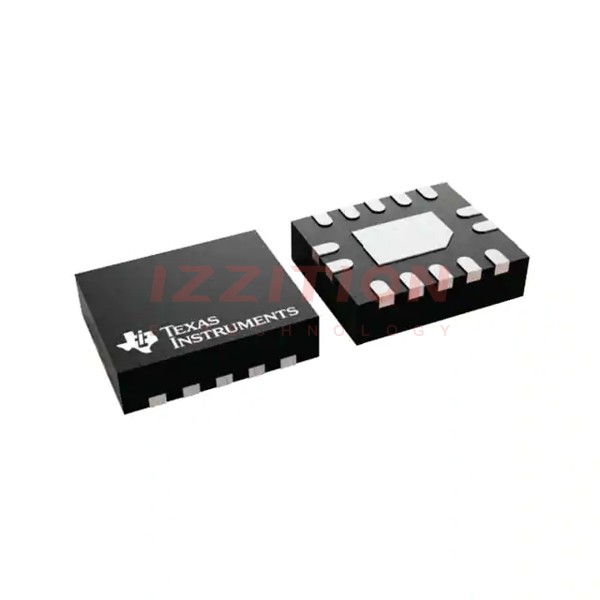

Texas Instruments SN74HCS86QBQARQ1
