Please send RFQ , we will respond immediately.

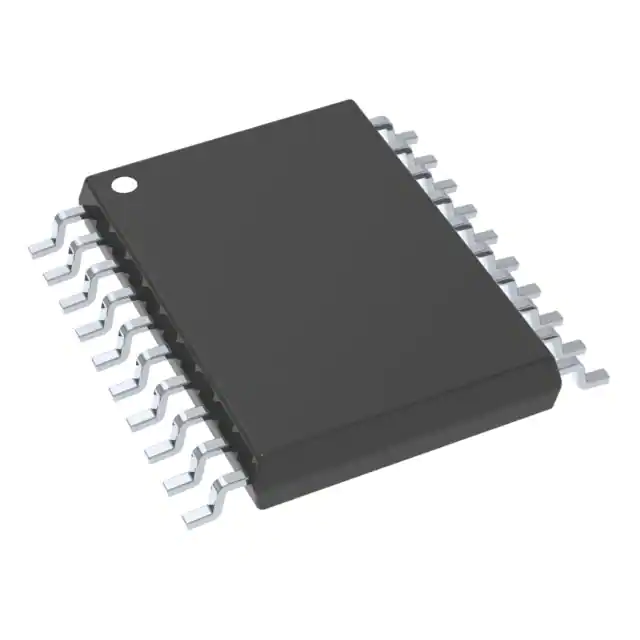

| Part Number | SN74HCS273PWR | SN74HCT273PWR | SN74HC273PWR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Reset | Master Reset | Master Reset |
| Type | D-Type | D-Type | D-Type |
| Output Type | Push-Pull | Non-Inverted | Non-Inverted |
| Number of Elements | 1 | 1 | 1 |
| Number of Bits per Element | 8 | 8 | 8 |
| Clock Frequency | 135 MHz | 37 MHz | 60 MHz |
| Max Propagation Delay @ V, Max CL | 14.3ns @ 6V, 50pF | 29ns @ 5.5V, 50pF | 27ns @ 6V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 7.8mA, 7.8mA | 4mA, 4mA | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V | 4.5V ~ 5.5V | 2V ~ 6V |
| Current - Quiescent (Iq) | 2 µA | 8 µA | 8 µA |
| Input Capacitance | 5 pF | 3 pF | 3 pF |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 20-TSSOP | 20-TSSOP | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) |
