Please send RFQ , we will respond immediately.

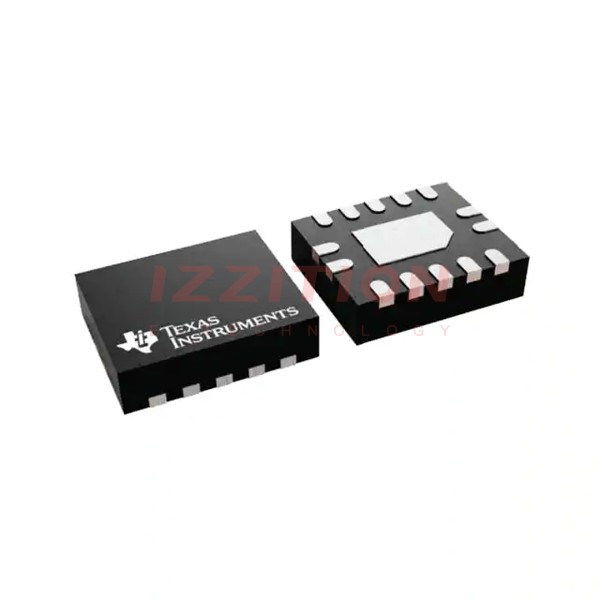

| Part Number | SN74HCS02QBQARQ1 | SN74HCS32QBQARQ1 | SN74HCS08QBQARQ1 | SN74HCS04QBQARQ1 | SN74HCS00QBQARQ1 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Logic Type | NOR Gate | OR Gate | AND Gate | Inverter | NAND Gate |
| Number of Circuits | 4 | 4 | 4 | 6 | 4 |
| Number of Inputs | 2 | 2 | 2 | 1 | 2 |
| Features | Schmitt Trigger Input | Schmitt Trigger Input | Schmitt Trigger Input | Schmitt Trigger Input | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 7.8mA, 7.8mA | 7.8mA, 7.8mA | 7.8mA, 7.8mA | 7.8mA, 7.8mA | 7.8mA, 7.8mA |
| Logic Level - Low | 1V ~ 3V | 1V ~ 3V | 1V ~ 3V | 1V ~ 3V | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF | 12ns @ 6V, 50pF | 12ns @ 6V, 50pF | 16ns @ 6V, 50pF | 12ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-WQFN (3x2.5) | 14-WQFN (3x2.5) | 14-WQFN (3x2.5) | 14-WQFN (3x2.5) | 14-WQFN (3x2.5) |
| Package / Case | 14-WFQFN Exposed Pad | 14-WFQFN Exposed Pad | 14-WFQFN Exposed Pad | 14-WFQFN Exposed Pad | 14-WFQFN Exposed Pad |
