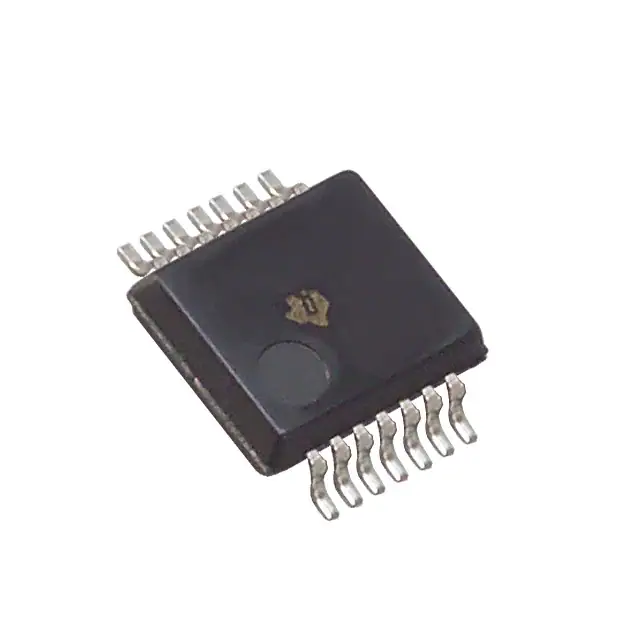

| Part Number | SN74HC74ADBR | SN74HC74DBR | SN74HCT74ADBR | SN74HC374ADBR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Function | Set(Preset) and Reset | Set(Preset) and Reset | Set(Preset) and Reset | Standard |
| Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Complementary | Complementary | Complementary | Tri-State, Non-Inverted |
| Number of Elements | 2 | 2 | 2 | 1 |
| Number of Bits per Element | 1 | 1 | 1 | 8 |
| Clock Frequency | 85 MHz | 60 MHz | 46 MHz | 70 MHz |
| Max Propagation Delay @ V, Max CL | 26ns @ 6V, 50pF | 30ns @ 6V, 50pF | 25ns @ 5.5V, 50pF | 31ns @ 6V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 4mA, 4mA | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 4.5V ~ 5.5V | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA | 4 µA | 4 µA | 8 µA |
| Input Capacitance | 3 pF | 3 pF | 3 pF | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SSOP | 14-SSOP | 14-SSOP | 20-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) |
