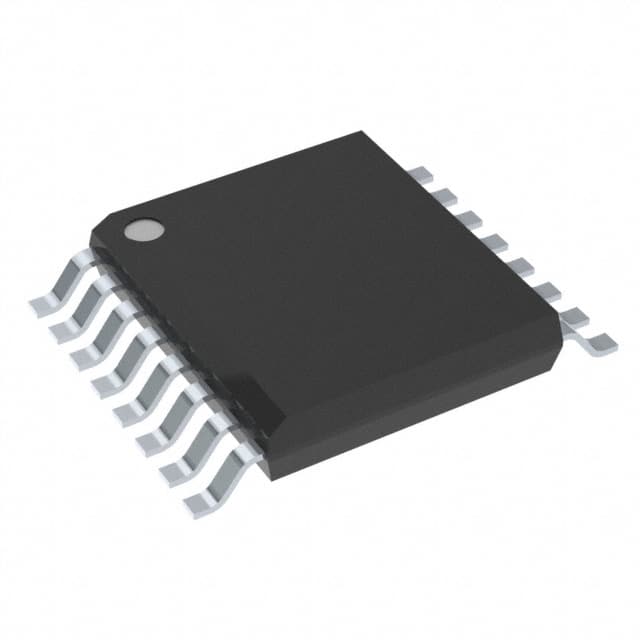

| Part Number | SN74HC174DBR | SN74HC174DR | SN74HC175DBR | SN74HC574DBR | SN74HC374DBR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Function | Master Reset | Master Reset | Master Reset | Standard | Standard |
| Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Non-Inverted | Non-Inverted | Complementary | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 1 | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 6 | 6 | 4 | 8 | 8 |
| Clock Frequency | 50 MHz | 50 MHz | 60 MHz | 40 MHz | 70 MHz |
| Max Propagation Delay @ V, Max CL | 27ns @ 6V, 50pF | 14ns @ 6V, 50pF | 26ns @ 6V, 50pF | 31ns @ 6V, 50pF | 31ns @ 6V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 7.8mA, 7.8mA | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA | 8 µA | 8 µA | 8 µA | 8 µA |
| Input Capacitance | 3 pF | 3 pF | 3 pF | 3 pF | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 16-SSOP | 16-SOIC | 16-SSOP | 20-SSOP | 20-SSOP |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) |
