Please send RFQ , we will respond immediately.

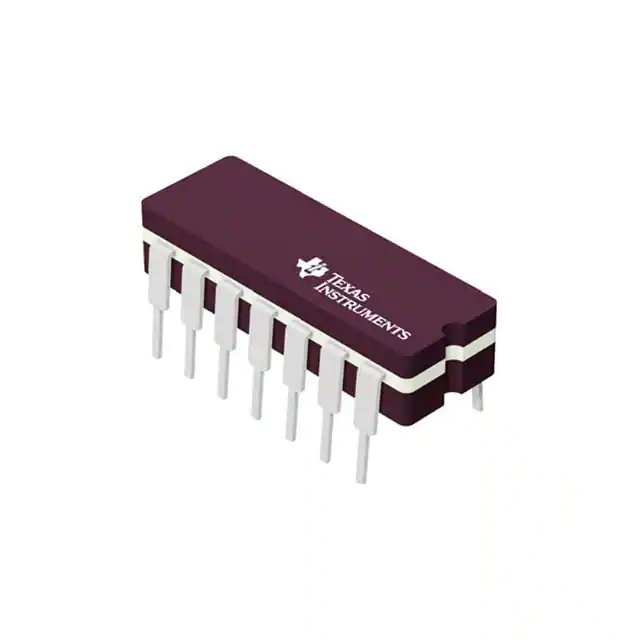

| Part Number | SN74HC14NE4 | SN74HC11NE4 | SN74HC14DE4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key |
| Logic Type | Inverter | AND Gate | Inverter |
| Number of Circuits | 6 | 3 | 6 |
| Number of Inputs | 1 | 3 | 1 |
| Features | Schmitt Trigger | - | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Logic Level - Low | 0.3V ~ 1.2V | 0.5V ~ 1.8V | 0.3V ~ 1.2V |
| Logic Level - High | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF | 17ns @ 6V, 50pF | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | 14-PDIP | 14-PDIP | 14-SOIC |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
