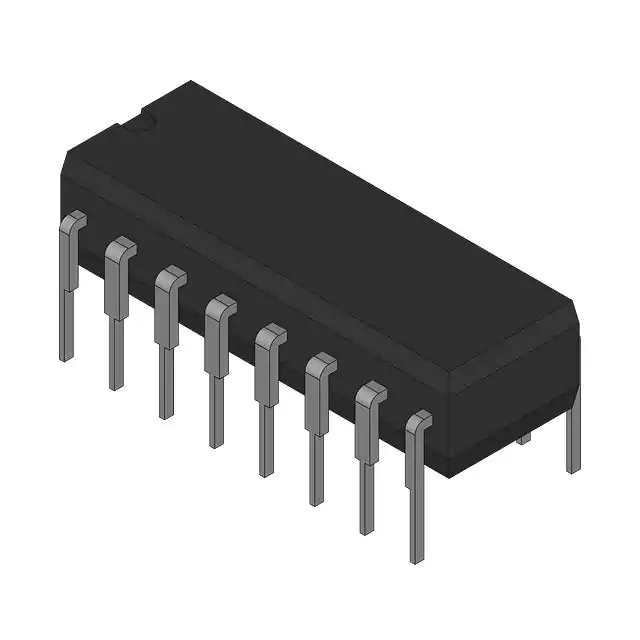

| Part Number | SN74HC109NS | SN74HC109NSR | SN74HC109N |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Set(Preset) and Reset | Set(Preset) and Reset | Set(Preset) and Reset |
| Type | JK Type | JK Type | JK Type |
| Output Type | Complementary | Complementary | Complementary |
| Number of Elements | 2 | 2 | 2 |
| Number of Bits per Element | 1 | 1 | 1 |
| Clock Frequency | 60 MHz | 60 MHz | 60 MHz |
| Max Propagation Delay @ V, Max CL | 30ns @ 6V, 50pF | 30ns @ 6V, 50pF | 30ns @ 6V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA | 4 µA | 4 µA |
| Input Capacitance | 3 pF | 3 pF | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole |
| Supplier Device Package | 16-SO | 16-SO | 16-PDIP |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.209", 5.30mm Width) | 16-DIP (0.300", 7.62mm) |
