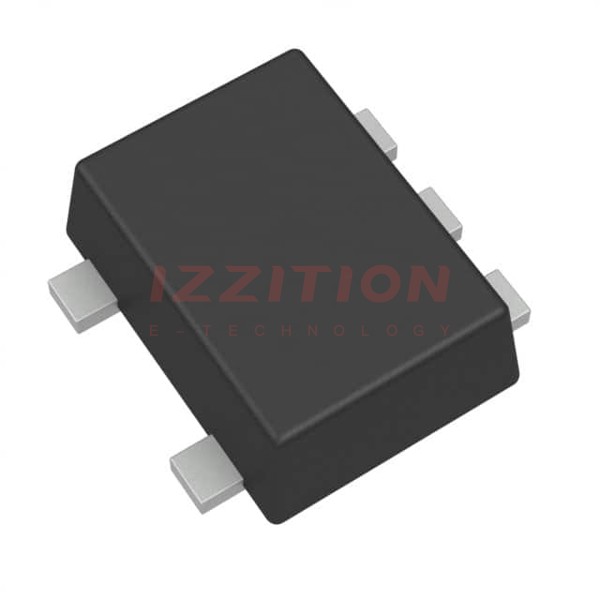

| Part Number | SN74AUP1G04DRLR | SN74AUP1G14DRLR | SN74AUP1G08DRLR | SN74AUP1G04DRYR | SN74AUP1G06DRLR | SN74AUP1G00DRLR | SN74AUP1G02DRLR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | Inverter | Inverter | AND Gate | Inverter | Inverter | NAND Gate | NOR Gate |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 2 | 1 | 1 | 2 | 2 |
| Features | - | Schmitt Trigger | - | - | Open Drain | - | - |
| Voltage - Supply | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | -, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | 0.7V ~ 0.9V | 0.1V ~ 0.88V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.1V ~ 0.45V | 0.7V ~ 0.9V | 0.7V ~ 0.9V |
| Logic Level - High | 1.6V ~ 2V | 0.6V ~ 2.29V | 1.6V ~ 2V | 1.6V ~ 2V | 0V ~ 3.6V | 1.6V ~ 2V | 1.6V ~ 2V |
| Max Propagation Delay @ V, Max CL | 5.4ns @ 3.3V, 30pF | 6.2ns @ 3.3V, 30pF | 6.2ns @ 3.3V, 30pF | 5.4ns @ 3.3V, 30pF | 10.5ns @ 3.3V, 30pF | 6.5ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-5 | SOT-5 | SOT-5 | 6-SON (1.45x1) | SOT-5 | SOT-5 | SOT-5 |
| Package / Case | SOT-553 | SOT-553 | SOT-553 | 6-UFDFN | SOT-553 | SOT-553 | SOT-553 |
