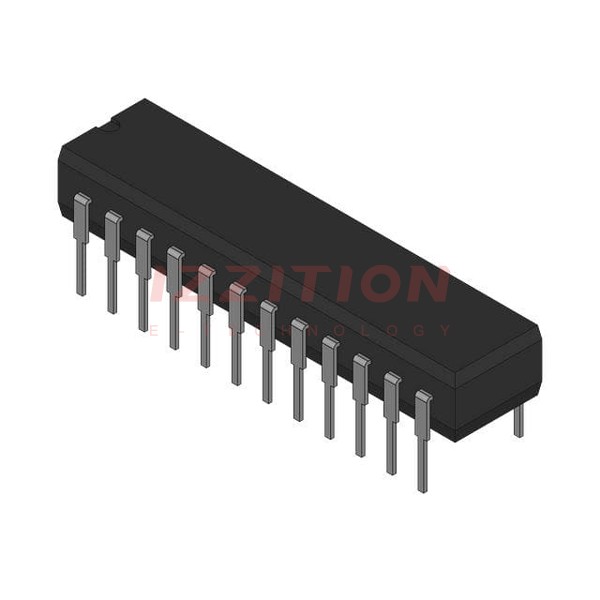

| Part Number | SN74AS826ANT | SN74AS821ANT | SN74AS823ANT | SN74AS825ANT |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Function | - | Standard | Master Reset | Master Reset |
| Type | - | D-Type | D-Type | D-Type |
| Output Type | - | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | - | 1 | 1 | 1 |
| Number of Bits per Element | - | 10 | 9 | 8 |
| Clock Frequency | - | - | - | - |
| Max Propagation Delay @ V, Max CL | - | 13ns @ 5V, 50pF | 13ns @ 5V, 50pF | 13ns @ 5V, 50pF |
| Trigger Type | - | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | - | 24mA, 48mA | 24mA, 48mA | 24mA, 48mA |
| Voltage - Supply | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | - | 88 mA | 80 mA | 73 mA |
| Input Capacitance | - | - | - | - |
| Operating Temperature | - | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | - | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | 24-PDIP | 24-PDIP | 24-PDIP |
| Package / Case | - | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
