Please send RFQ , we will respond immediately.

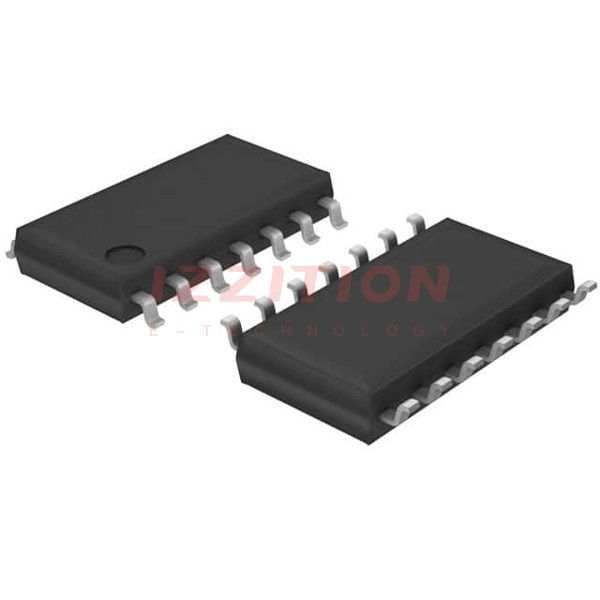

| Part Number | SN74AS20NSR | SN74AS27NSR | SN74AS21NSR | SN74AS30NSR | SN74AS00NSR | SN74AS10NSR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Active | Discontinued at Digi-Key | Active | Active |
| Logic Type | NAND Gate | - | AND Gate | NAND Gate | NAND Gate | NAND Gate |
| Number of Circuits | 2 | - | 2 | 1 | 4 | 3 |
| Number of Inputs | 4 | - | 4 | 8 | 2 | 3 |
| Features | - | - | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | - | - | - | - | - |
| Current - Output High, Low | 2mA, 20mA | - | 2mA, 20mA | 2mA, 20mA | 2mA, 20mA | 2mA, 20mA |
| Logic Level - Low | 0.8V | - | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | - | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF | - | 6ns @ 5V, 50pF | 5ns @ 5V, 50pF | 4.5ns @ 5V, 50pF | 4.5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SO | - | 14-SO | 14-SO | 14-SO | 14-SO |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | - | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) |
