Please send RFQ , we will respond immediately.

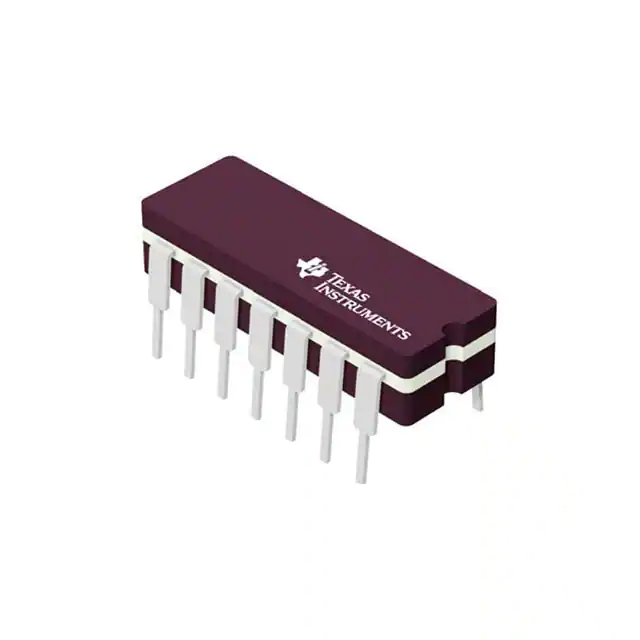

| Part Number | SN74AS1000AN | SN74AS1000ANS | SN74AS1004AN | SN74AS1008AN | SN74AS1000AD |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Logic Type | NAND Gate | - | Inverter | AND Gate | NAND Gate |
| Number of Circuits | 4 | - | 6 | 4 | 4 |
| Number of Inputs | 2 | - | 1 | 2 | 2 |
| Features | - | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 3.5 mA | - | - | - | - |
| Current - Output High, Low | 48mA, 48mA | - | 48mA, 48mA | 48mA, 48mA | 48mA, 48mA |
| Logic Level - Low | 0.8V | - | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | - | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 4ns @ 5V, 50pF | - | 4ns @ 5V, 50pF | 6ns @ 5V, 50pF | 4ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | - | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | 14-PDIP | - | 14-PDIP | 14-PDIP | 14-SOIC |
| Package / Case | 14-DIP (0.300", 7.62mm) | - | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
