Please send RFQ , we will respond immediately.

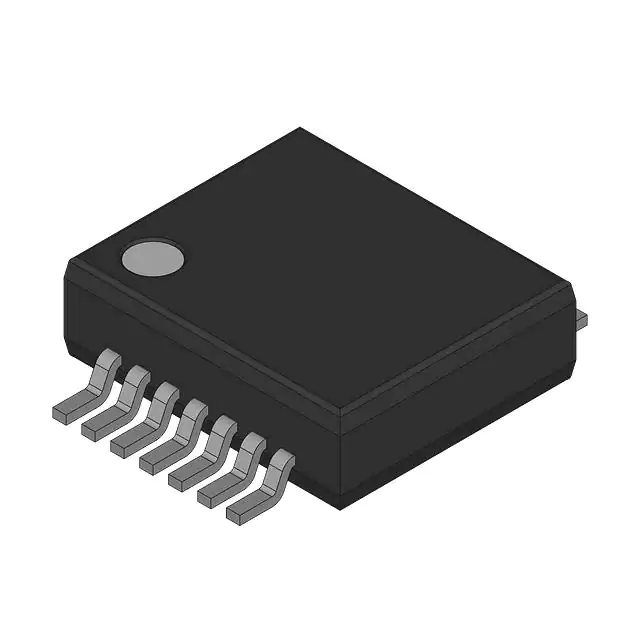

| Part Number | SN74AS00DBR | SN74AS00DR | SN74AS30DBR | SN74AS08DBR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Discontinued at Digi-Key | Obsolete |
| Logic Type | - | NAND Gate | NAND Gate | AND Gate |
| Number of Circuits | - | 4 | 1 | 4 |
| Number of Inputs | - | 2 | 8 | 2 |
| Features | - | - | - | - |
| Voltage - Supply | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | - | - | - |
| Current - Output High, Low | - | 2mA, 20mA | 2mA, 20mA | 2mA, 20mA |
| Logic Level - Low | - | 0.8V | 0.8V | 0.8V |
| Logic Level - High | - | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | - | 4.5ns @ 5V, 50pF | 5ns @ 5V, 50pF | 5.5ns @ 5V, 50pF |
| Operating Temperature | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 14-SOIC | 14-SSOP | 14-SSOP |
| Package / Case | - | 14-SOIC (0.154", 3.90mm Width) | 14-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) |
