Please send RFQ , we will respond immediately.

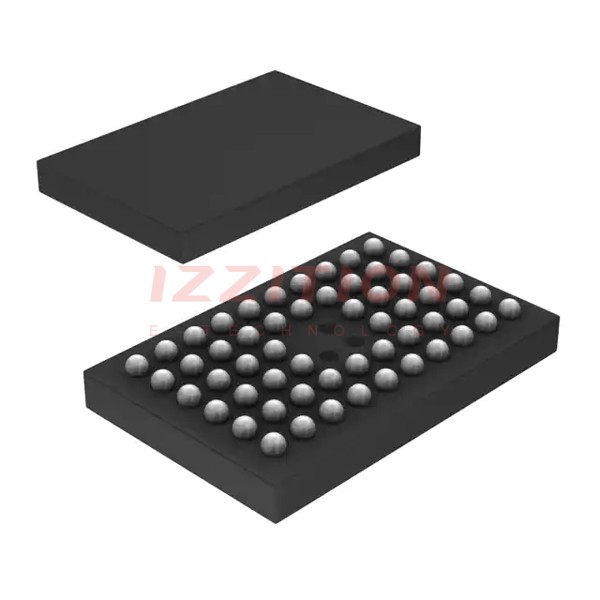

| Part Number | SN74ALVTH16374KR | SN74ALVTH16374VR | SN74ALVCH16374KR | SN74ALVTH16374GR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Active |
| Function | Standard | Standard | Standard | Standard |
| Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 2 | 2 | 2 | 2 |
| Number of Bits per Element | 8 | 8 | 8 | 8 |
| Clock Frequency | 250 MHz | 250 MHz | 150 MHz | 250 MHz |
| Max Propagation Delay @ V, Max CL | 3.2ns @ 3.3V, 50pF | 3.2ns @ 3.3V, 50pF | 4.2ns @ 3.3V, 50pF | 3.2ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 8mA, 24mA; 32mA, 64mA | 8mA, 24mA; 32mA, 64mA | 24mA, 24mA | 8mA, 24mA; 32mA, 64mA |
| Voltage - Supply | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 1.65V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V |
| Current - Quiescent (Iq) | 100 µA | 100 µA | 40 µA | 100 µA |
| Input Capacitance | 3.5 pF | 3.5 pF | 3 pF | 3.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 56-BGA Microstar Junior (7x4.5) | 48-TVSOP | 56-BGA Microstar Junior (7x4.5) | 48-TSSOP |
| Package / Case | 56-VFBGA | 48-TFSOP (0.173", 4.40mm Width) | 56-VFBGA | 48-TFSOP (0.240", 6.10mm Width) |
