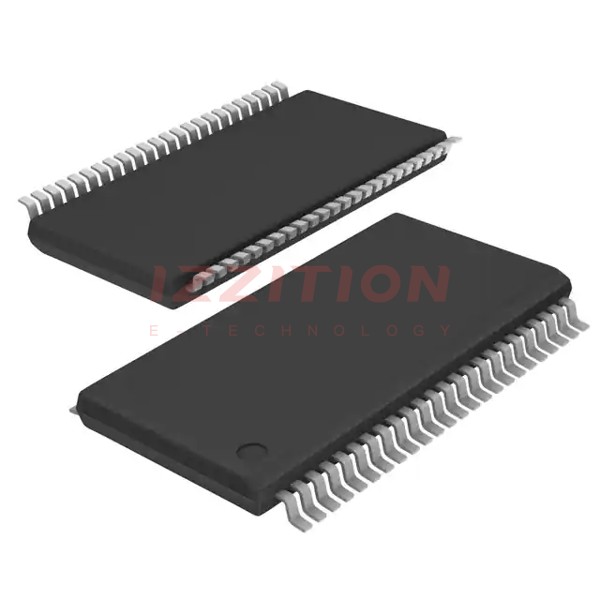

| Part Number | SN74ALVTH16245VR | SN74ALVTHR16245VR | SN74ALVTH162245VR | SN74ALVTH16240VR | SN74ALVTH16244VR | SN74ALVTH16245GR | SN74ALVTH16245KR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Active | Active | Obsolete |
| Logic Type | Transceiver, Non-Inverting | Transceiver, Non-Inverting | Transceiver, Non-Inverting | Buffer, Inverting | Buffer, Non-Inverting | Transceiver, Non-Inverting | Transceiver, Non-Inverting |
| Number of Elements | 2 | 2 | 2 | 4 | 4 | 2 | 2 |
| Number of Bits per Element | 8 | 8 | 8 | 4 | 4 | 8 | 8 |
| Input Type | - | - | - | - | - | - | - |
| Output Type | 3-State | 3-State | 3-State | 3-State | 3-State | 3-State | 3-State |
| Current - Output High, Low | 32mA, 64mA | 12mA, 12mA | 12mA, 12mA; 32mA, 32mA | 32mA, 64mA | 32mA, 64mA | 32mA, 64mA | 32mA, 64mA |
| Voltage - Supply | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-TFSOP (0.173", 4.40mm Width) | 48-TFSOP (0.173", 4.40mm Width) | 48-TFSOP (0.173", 4.40mm Width) | 48-TFSOP (0.173", 4.40mm Width) | 48-TFSOP (0.173", 4.40mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 56-VFBGA |
| Supplier Device Package | 48-TVSOP | 48-TVSOP | 48-TVSOP | 48-TVSOP | 48-TVSOP | 48-TSSOP | 56-BGA Microstar Junior (7x4.5) |
