Please send RFQ , we will respond immediately.

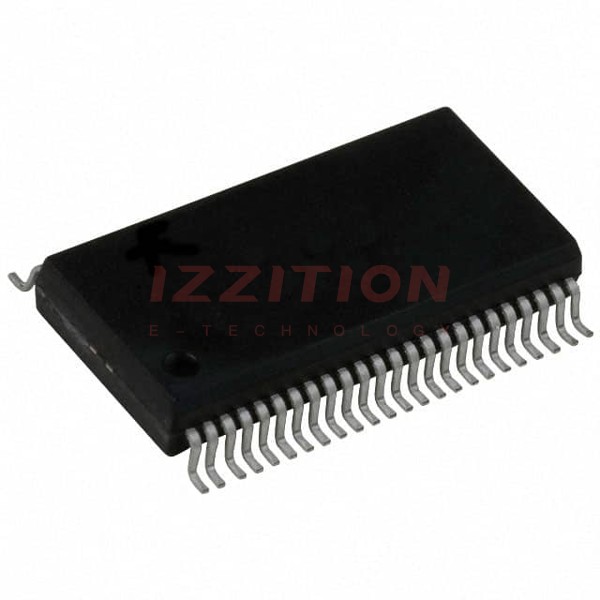

| Part Number | SN74ALVTH162244GR | SN74ALVTH162245GR | SN74ALVTH16244GR | SN74ALVTH162244LR | SN74ALVTH162244VR | SN74ALVCH162244GR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Logic Type | Buffer, Non-Inverting | Transceiver, Non-Inverting | Buffer, Non-Inverting | Buffer, Non-Inverting | Buffer, Non-Inverting | Buffer, Non-Inverting |
| Number of Elements | 4 | 2 | 4 | 4 | 4 | 4 |
| Number of Bits per Element | 4 | 8 | 4 | 4 | 4 | 4 |
| Input Type | - | - | - | - | - | - |
| Output Type | 3-State | 3-State | 3-State | 3-State | 3-State | 3-State |
| Current - Output High, Low | 8mA, 12mA; 12mA, 12mA | 12mA, 12mA; 32mA, 32mA | 32mA, 64mA | 8mA, 12mA; 12mA, 12mA | 8mA, 12mA; 12mA, 12mA | 12mA, 12mA |
| Voltage - Supply | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 48-BSSOP (0.295", 7.50mm Width) | 48-TFSOP (0.173", 4.40mm Width) | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP | 48-TSSOP | 48-TSSOP | 48-SSOP | 48-TVSOP | 48-TSSOP |
