Please send RFQ , we will respond immediately.

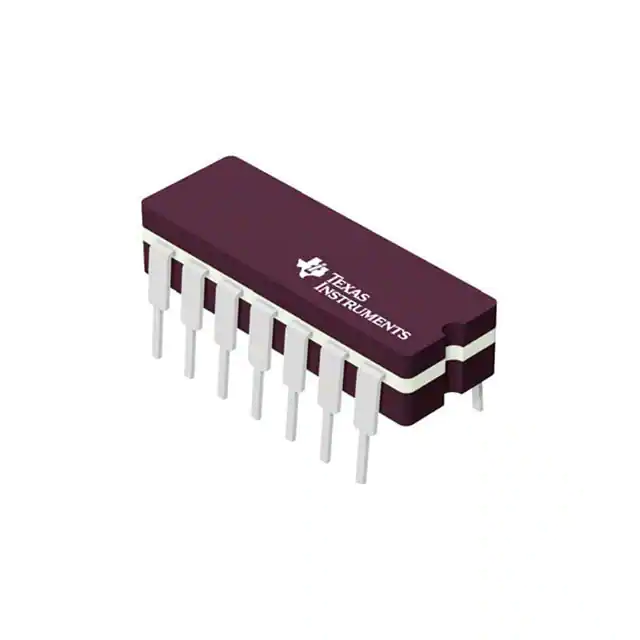

| Part Number | SN74ALS37AN | SN74ALS37ANS | SN74ALS27AN | SN74ALS30AN | SN74ALS33AN |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Obsolete |
| Logic Type | NAND Gate | - | NOR Gate | NAND Gate | NOR Gate |
| Number of Circuits | 4 | - | 3 | 1 | 4 |
| Number of Inputs | 2 | - | 3 | 8 | 2 |
| Features | - | - | - | - | Open Collector |
| Voltage - Supply | 4.5V ~ 5.5V | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | - | - | - | - |
| Current - Output High, Low | 2.6mA, 24mA | - | 400µA, 8mA | 400µA, 8mA | -, 24mA |
| Logic Level - Low | 0.8V | - | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | - | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF | - | 15ns @ 5V, 50pF | 12ns @ 5V, 50pF | 33ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | - | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | - | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 14-PDIP | - | 14-PDIP | 14-PDIP | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) | - | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
