Please send RFQ , we will respond immediately.

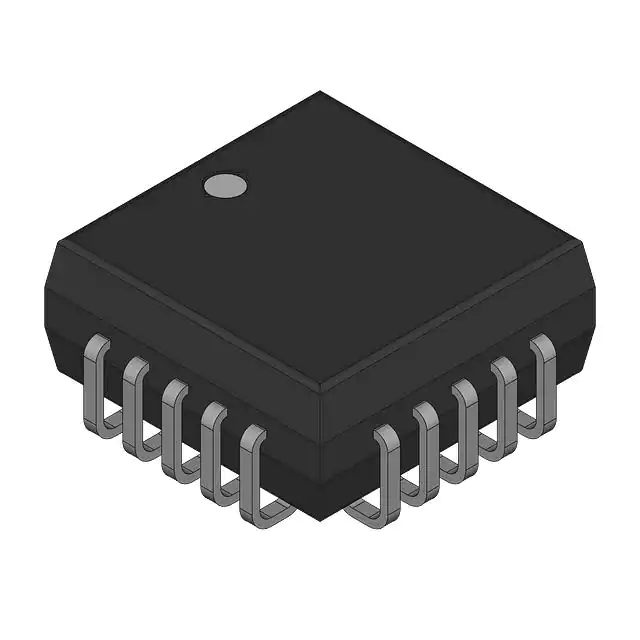

| Part Number | SN74ALS20AFN | SN74ALS20AN | SN74ALS10AFN |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Logic Type | - | NAND Gate | - |
| Number of Circuits | - | 2 | - |
| Number of Inputs | - | 4 | - |
| Features | - | - | - |
| Voltage - Supply | - | 4.5V ~ 5.5V | - |
| Current - Quiescent (Max) | - | - | - |
| Current - Output High, Low | - | 400µA, 8mA | - |
| Logic Level - Low | - | 0.8V | - |
| Logic Level - High | - | 2V | - |
| Max Propagation Delay @ V, Max CL | - | 12.5ns @ 5V, 50pF | - |
| Operating Temperature | - | 0°C ~ 70°C | - |
| Mounting Type | - | Through Hole | - |
| Supplier Device Package | - | 14-PDIP | - |
| Package / Case | - | 14-DIP (0.300", 7.62mm) | - |
